Mccb Installation And Maintenance Guide

Molded Case Circuit Breakers (MCCBs) are essential devices in electrical systems that protect circuits from overloads, short circuits, and other faults. Their effectiveness depends largely on proper installation and regular maintenance. Incorrect sizing, poor connections, or neglecting upkeep can lead to equipment damage or system failures. This guide outlines key installation practices, routine maintenance procedures, and troubleshooting methods to help ensure MCCBs perform reliably over their service life.

Installation Guidelines

Proper Sizing

Selecting the right MCCB size is critical for safe operation. The breaker’s current rating, voltage rating, and breaking capacity must match the specific requirements of the circuit it protects. Undersized breakers may trip unnecessarily, while oversized breakers might fail to protect the system adequately. Factors to consider include maximum load current, the nature of the load (inductive or resistive), and the potential fault current level. It is important to follow manufacturer specifications and comply with applicable electrical codes to ensure proper protection.

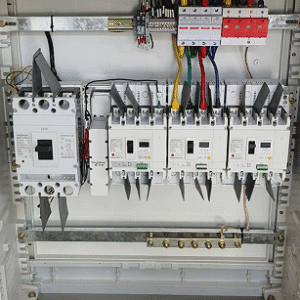

Connection Requirements

Proper electrical connections are fundamental to MCCB performance and safety. Connections must be secure and tight to avoid overheating, arcing, or other hazards. Use conductors of appropriate size and type, and ensure terminals are clean and free of corrosion. The installation environment should protect the MCCB from moisture, dust, and extreme temperatures. Installing MCCBs within suitable enclosures helps extend their lifespan and maintain reliable operation.

Routine Maintenance

Visual Inspections

Regular visual inspections help identify early signs of damage or deterioration. Look for cracks or discoloration in the breaker’s case, accumulation of dust or debris, and any loose or corroded terminals. Detecting these issues early allows for timely corrective actions, preventing more serious problems.

Mechanical Operation Checks

Mechanical parts of the MCCB must operate smoothly to ensure proper tripping during faults. Periodically test the breaker by manually switching it on and off to confirm smooth operation and responsiveness of the trip mechanism. Lubricate moving components if recommended by the manufacturer, and check for signs of wear or damage.

Electrical Testing

Electrical testing verifies that the MCCB’s protective functions perform as intended. Tests include measuring insulation resistance, checking trip unit accuracy, and conducting primary injection tests to simulate fault currents. These assessments confirm that the breaker trips at specified current levels and times, maintaining system protection.

Troubleshooting Common Issues

Frequent or unexpected tripping can indicate problems such as incorrect breaker sizing, overloaded circuits, or poor connections. If the MCCB fails to trip when needed, this may point to mechanical failures or faulty trip units. Troubleshooting should begin with visual and mechanical inspections, followed by electrical testing to identify malfunctioning components. Repair or replacement should be performed as necessary. Keeping detailed records of breaker trips and maintenance can help detect recurring issues and improve system reliability.

Conclusion

Proper installation and maintenance are vital for ensuring MCCBs provide effective and reliable circuit protection. Selecting the correct size, ensuring secure connections, and performing regular inspections and tests all contribute to the longevity and safety of electrical systems. Whether used in industrial, commercial, or residential applications, following best practices for MCCB care helps reduce downtime, prevent hazards, and maintain smooth operation over time.
