5 Considerations For Choosing A Molded Case Circuit Breakers

Choosing the right molded case circuit breaker (MCCB) is critical for ensuring the safety and reliability of your electrical system. MCCBs protect circuits from overloads, short circuits, and other faults, but selecting an inappropriate breaker can lead to equipment damage, safety hazards, or operational inefficiencies. This guide will walk you through the key factors to consider when choosing an MCCB, helping you make an informed decision tailored to your specific electrical requirements.

How to Choose Molded Case Circuit Breakers (MCCBs)?

Selection Factor	Description	Importance
Current Rating	Maximum continuous current MCCB can handle without tripping. Must match or exceed expected load.	Prevents nuisance trips and ensures protection against overloads. Overrating or underrating causes inefficiency or insufficient protection.
Breaking Capacity	Maximum fault current MCCB can safely interrupt without damage.	Must be ≥ highest potential fault current to avoid catastrophic failures and ensure safety.
Trip Characteristics	Defines how MCCB responds to overcurrent—relationship between current magnitude and trip time.	Select delayed trip for high inrush loads (motors), instantaneous trip for quick short-circuit protection.
Voltage Rating	Maximum voltage MCCB can handle and interrupt safely.	Must match or exceed system voltage to prevent insulation failure and comply with safety standards.
Number of Poles	Number of conductors MCCB can protect simultaneously (single, double, triple, four poles).	Ensures proper protection based on electrical system configuration (single-phase, three-phase, etc.).

Current Rating

The current rating of a Molded Case Circuit Breaker (MCCB) is one of the most crucial factors in its selection. This rating specifies the maximum continuous current that the breaker can handle without tripping. It is essential to choose an MCCB with a current rating that matches or exceeds the expected load of the circuit it will protect. Selecting an MCCB with an appropriate current rating ensures that the device can handle normal operating conditions without nuisance tripping, while still providing protection against overloads. For example, a circuit expected to carry a load of 150 amperes would require an MCCB rated for at least 150 amperes. Overrating or underrating can lead to inefficiencies or insufficient protection, respectively.

Breaking Capacity

Breaking capacity, or interrupting capacity, refers to the maximum fault current that an MCCB can safely interrupt without damage. This capacity must be greater than or equal to the highest potential fault current in the system where the MCCB will be installed. Properly matching the breaking capacity to the fault current ensures the MCCB can effectively protect the circuit by safely interrupting even the most severe faults. For instance, in an industrial setting with high potential fault currents, an MCCB with a high breaking capacity is essential to prevent catastrophic failures. Ignoring this criterion could result in inadequate protection, posing significant risks to equipment and safety.

Trip Characteristics

Trip characteristics define how an MCCB responds to different types of overcurrent conditions. The trip curve of an MCCB shows the relationship between the current and the time it takes to trip. Different applications may require different trip characteristics to provide optimal protection. For example, circuits with motors that have high inrush currents might benefit from a delayed tripping mechanism to avoid nuisance trips during startup. Conversely, circuits that require immediate protection from short circuits need an MCCB with an instantaneous trip characteristic. Understanding the specific requirements of the circuit and selecting an MCCB with the appropriate trip characteristics ensures reliable and effective protection.

Voltage Rating

The voltage rating of an MCCB indicates the maximum voltage it can handle and safely interrupt. It is essential to select an MCCB with a voltage rating that matches or exceeds the system voltage of the application. Using an MCCB with an inadequate voltage rating can lead to insulation breakdown, arcing, and potential failure of the device. For instance, an MCCB used in a 480V system must have a voltage rating of at least 480V. Ensuring the correct voltage rating not only guarantees safe operation but also compliance with regulatory standards and safety codes.

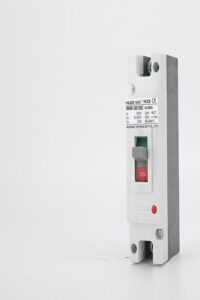

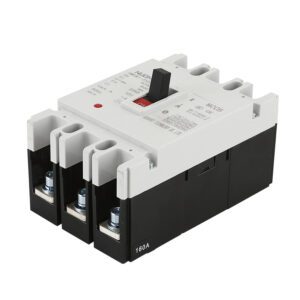

Number of Poles

The number of poles reflects how many conductors the MCCB can protect simultaneously. v come in single-pole, double-pole, triple-pole, and four-pole versions. The choice depends on the electrical system: single-pole for single-phase, double-pole for two-phase or split-phase, triple-pole for three-phase systems, and four-pole for three-phase with neutral. Correct pole selection ensures full circuit protection.

Conclusion

Selecting the right molded case circuit breaker requires careful consideration of several critical factors: current rating, breaking capacity, trip characteristics, voltage rating, and number of poles. Making the correct choice ensures effective protection tailored to your electrical system’s needs, enhancing safety, operational efficiency, and equipment longevity. Understanding these criteria will help you choose an MCCB that not only safeguards your infrastructure but also optimizes overall system performance.
