Why Using An Ac Breaker In A Dc System Is A Dangerous Mistake

In the world of electrical engineering, safety and reliability are paramount. Whether you’re a seasoned professional or a DIY enthusiast, understanding the nuances of electrical components is crucial. One of the most common points of confusion and a potentially fatal mistake is the misuse of a circuit breaker. Specifically, using an AC molded case circuit breaker (MCCB) in a direct current (DC) system.

At NUOMAK, we’re committed to not only providing high-quality electrical solutions but also to empowering our customers with the knowledge to make safe and effective choices. This blog post will clarify the fundamental differences between AC and DC circuits, explain why an AC MCCB will fail in a DC system, and detail the key design features that distinguish them.

The Fundamental Difference: AC vs. DC

The core difference between alternating current (AC) and direct current (DC) lies in the direction of the electrical flow.

• AC electricity constantly changes direction, oscillating back and forth at a specific frequency (e.g., 50 or 60 Hz). This periodic reversal of current is a key characteristic that AC circuit breakers exploit to interrupt a fault.
• DC electricity, on the other hand, flows in only one direction. This steady, unidirectional flow presents a unique challenge when trying to break a circuit, especially under fault conditions.

Why AC Breakers Fail in DC Systems

The primary function of a circuit breaker is to safely and quickly interrupt the flow of current during a fault (such as a short circuit or overload). The mechanism for achieving this is where the critical difference lies.

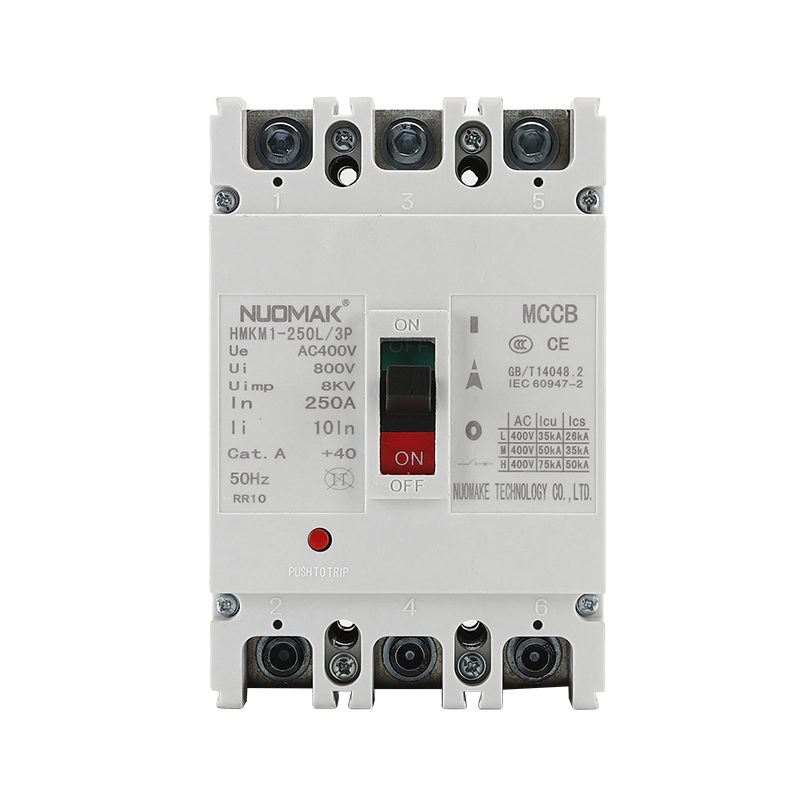

An AC MCCB is designed to interrupt the current at its zero-crossing point. Because the AC waveform naturally crosses zero multiple times per second, the breaker’s arc extinguishing chamber can easily snuff out the arc that forms when the contacts open. This makes breaking the circuit relatively straightforward.

In a DC system, there is no natural zero-crossing point. When an AC breaker attempts to open a DC circuit under fault conditions, a powerful, continuous electrical arc forms between the opening contacts. This arc does not self-extinguish. Instead, it can sustain itself, causing extreme heat, melting the internal components of the breaker, and potentially leading to an explosion or fire.

Key Design Differences: AC MCCB vs. DC MCCB

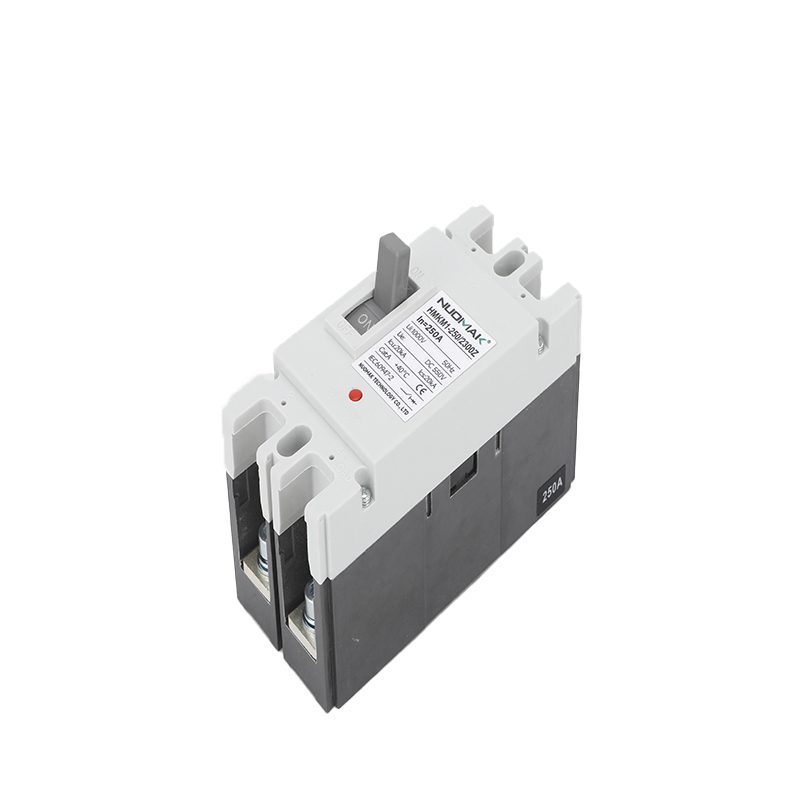

To overcome the challenge of extinguishing a continuous DC arc, DC circuit breakers are engineered with specific features that an AC breaker lacks.

Arc Extinguishing Chambers

DC breakers have larger, more robust arc chutes and arc extinguishing chambers. These are often equipped with powerful magnetic blow-out coils that generate a strong magnetic field. This field elongates and pushes the arc away from the contacts, forcing it into the arc chute where it can be cooled and extinguished more effectively. AC breakers have less sophisticated arc extinguishing systems because they don’t need to deal with a continuous arc.

Contact Material and Air Gap

The contacts inside a DC MCCB are made from materials specifically chosen for their ability to withstand the high temperatures and erosion caused by a persistent arc. The physical gap between the contacts is also typically larger in a DC breaker to prevent the arc from restriking once the contacts are open.

Polarity Sensitivity

Many DC breakers are polarity-sensitive and must be installed with the correct polarity (positive and negative connections). This is critical for the magnetic blow-out coils to work properly, as the magnetic field’s direction is dependent on the current flow. An AC breaker is non-polarized.

The Consequences of Getting It Wrong

Ignoring these design differences and using an AC breaker in a DC application can lead to catastrophic consequences:

• Breaker Failure and Fire: As described above, the breaker will fail to interrupt the fault, leading to internal damage, overheating, and a high risk of an electrical fire.
• Equipment Damage: The sustained fault current will continue to flow, causing severe damage to your expensive equipment, from solar panels and batteries to motors and control systems.
• Safety Hazards: The risk of an explosion, fire, or electrocution to personnel is significant. A failed breaker is not just a financial loss; it is a life-threatening safety hazard.

How to Choose the Right MCCB for Your Application

Selecting the correct MCCB is a critical step in ensuring the safety and longevity of your electrical system. Here’s a simple checklist to guide you:

1. Identify the System Type: Is your application AC or DC? This is the most crucial first step. Common DC applications include solar power systems, battery storage, telecommunications, and electric vehicle charging stations.
2. Determine the Voltage and Current: Ensure the MCCB’s voltage and current ratings are appropriate for your system. A breaker rated for DC 500V cannot be used in an AC 480V system, and vice versa. Look for the “VDC” or “VAC” label.
3. Check Interrupting Capacity (Icu/Ics): The breaker’s interrupting capacity must be higher than the maximum potential short-circuit current of your system.
4. Confirm Polarity (for DC): If you’re using a DC breaker, check if it’s polarity-sensitive and install it accordingly.

Conclusion

Circuit breakers are the silent guardians of our electrical systems. While they may look similar on the outside, the internal engineering of an AC MCCB is fundamentally different from a DC MCCB. Choosing the right breaker is not a matter of preference but of safety and compliance.
