Which Is Better Mccb Or Rccb

When it comes to electrical safety, selecting the right circuit breaker is crucial. Two common types you’ll encounter are the Molded Case Circuit Breaker (MCCB) and the Residual Current Circuit Breaker (RCCB). While they both protect electrical circuits, they do so in different ways. Understanding their unique functions and applications is key to ensuring the safety of your home or business.

At NUOMAK, we are committed to providing reliable and high-quality electrical solutions. In this guide, we’ll break down the differences between MCCB and RCCB, helping you decide which is the best fit for your specific requirements.

What Is an MCCB?

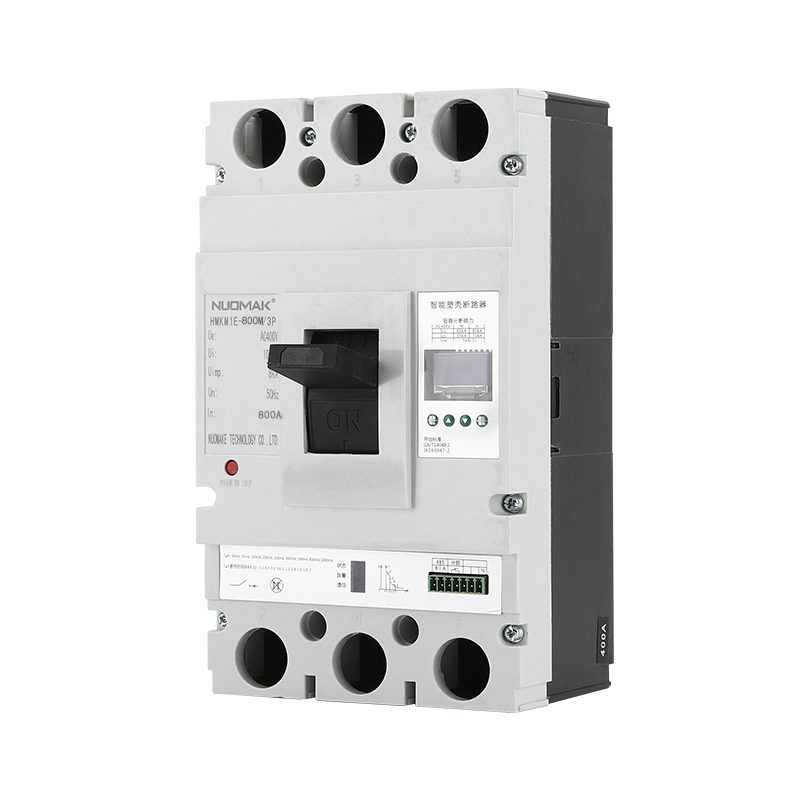

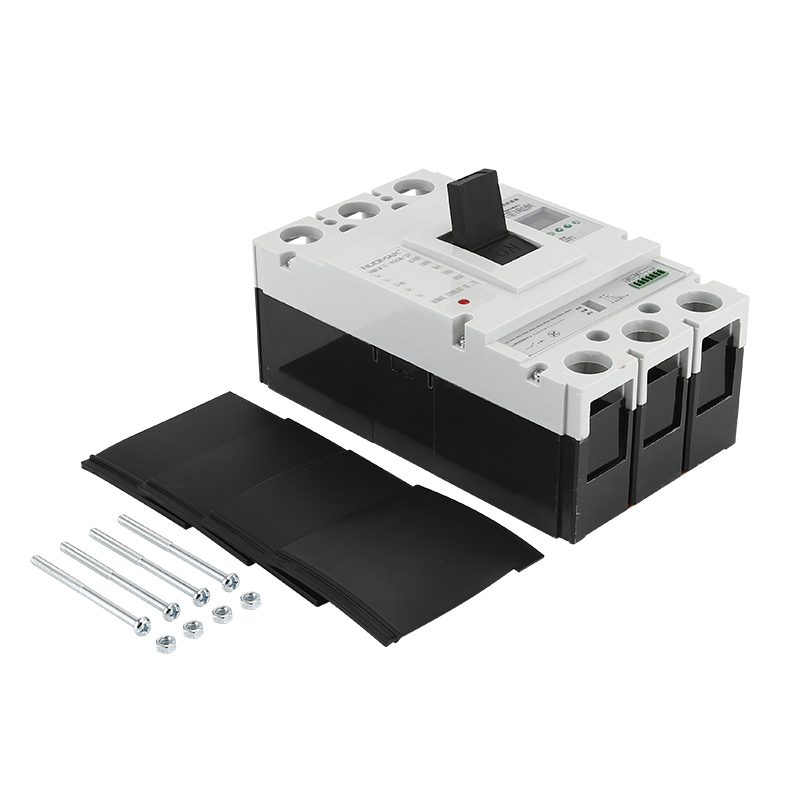

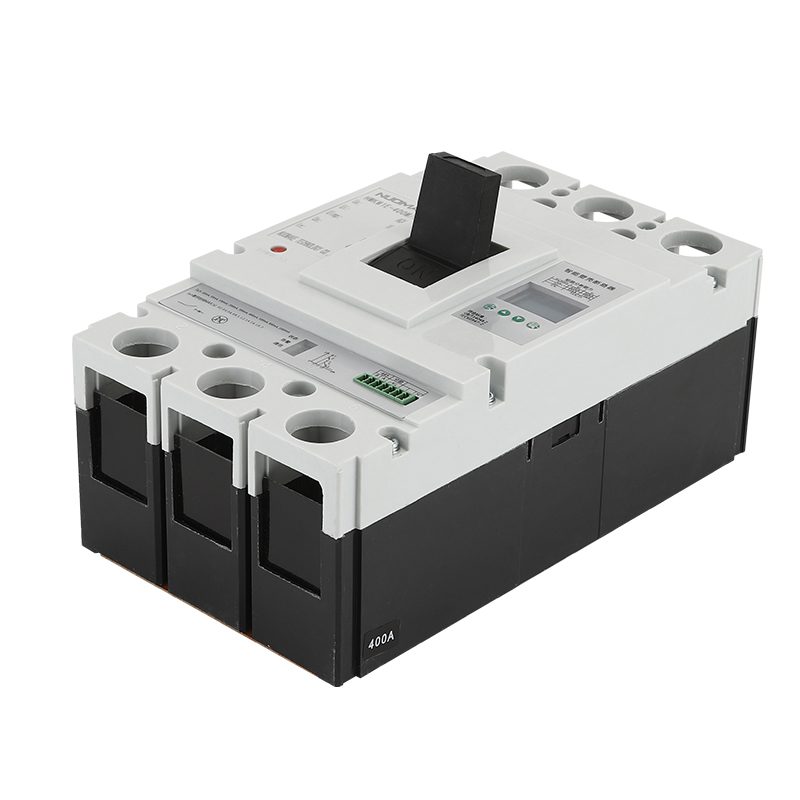

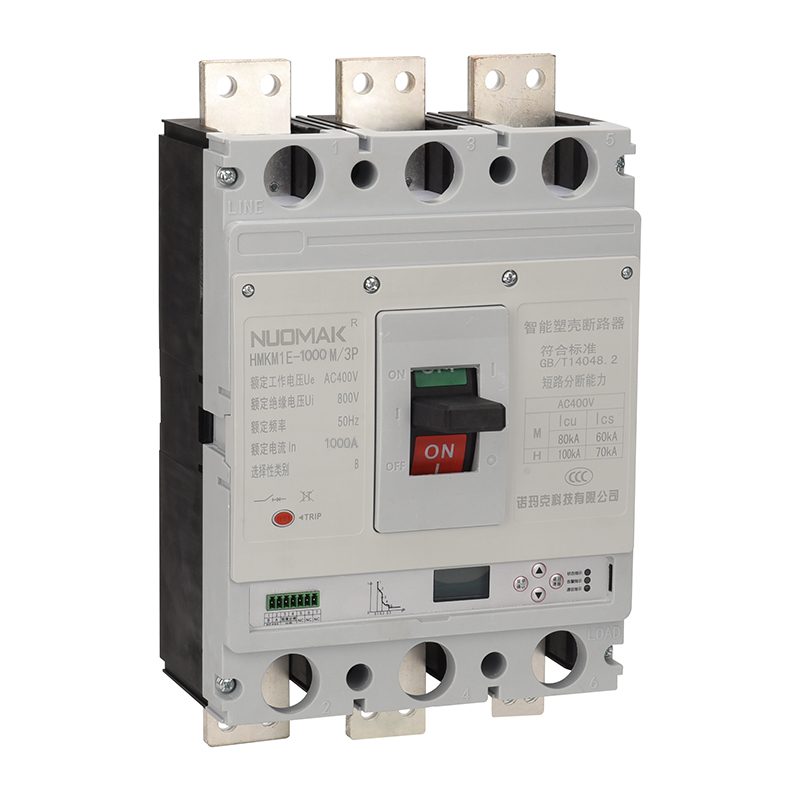

An MCCB, or Molded Case Circuit Breaker, is an electromechanical device designed to protect an electrical circuit from excessive current, which can cause damage to equipment or lead to fires. It works by automatically interrupting the flow of electricity when it detects a fault, such as an overload or a short circuit.

MCCBs are called “molded case” because their components are enclosed in a rugged, insulating molded composite case. This makes them highly durable and suitable for industrial and commercial applications. They are available in a wide range of current ratings, from as low as 10A up to 2500A, making them incredibly versatile.

What Is an RCCB?

An RCCB, or Residual Current Circuit Breaker, is a safety device specifically designed to protect against electric shock and ground faults. Unlike an MCCB, an RCCB does not protect against overloads or short circuits. Its primary function is to detect small leakage currents to the ground, which are too low to trip a conventional circuit breaker but can be fatal to humans.

The name “residual current” refers to the imbalance of current flowing through the live and neutral wires. In a healthy circuit, the current flowing out through the live wire should equal the current flowing back through the neutral wire. If there’s an imbalance—due to someone touching a live wire, for example—the RCCB senses this residual current and quickly trips the circuit, often in milliseconds, preventing a serious or fatal electric shock.

Key Differences Between MCCB and RCCB

Understanding the core differences between these two devices is essential for making the right choice.

1. Protection Function

• MCCB: Primarily protects against overload and short circuit faults. It’s a fundamental protection device for electrical equipment and wiring.
• RCCB: Exclusively protects against earth leakage or ground faults, which are the main cause of electric shock.

2. Current Rating and Capacity

• MCCB: Has a wide range of current ratings and a high breaking capacity, making it suitable for high-power circuits and main distribution boards in commercial and industrial settings.
• RCCB: Typically has a lower rated current and is sensitive to very small leakage currents (e.g., 30mA, 100mA, 300mA). It’s not designed to handle large fault currents from overloads or short circuits.

3. Application Environment

• MCCB: Ideal for industrial plants, large commercial buildings, and main electrical panels where protection against high-current faults is the main concern. They are often used as main circuit breakers for entire facilities.
• RCCB: Best for protecting sensitive areas like homes, offices, and circuits supplying outlets in wet areas (bathrooms, kitchens, etc.). They are often installed in series with an MCB or MCCB to provide comprehensive protection.

4. Installation and Usage

• MCCB: Can be installed as the main breaker for a panel board or as a branch circuit breaker for heavy-duty equipment.
• RCCB: Must be used in conjunction with a device like an MCCB or MCB to provide complete protection. An RCCB will not trip on an overload or short circuit, so a secondary protective device is required.

5. Cost and Maintenance

• MCCB: Generally more expensive due to its robust construction and higher current-handling capabilities. They are highly reliable and require minimal maintenance.
• RCCB: Can be more cost-effective for single-circuit protection. They often have a “test” button that should be pressed regularly to ensure the device is functioning correctly.

Advantages of MCCB

• Versatility: Can be used in a wide range of applications, from small panels to large industrial plants.
• Adjustable Trip Settings: Many MCCB models allow you to adjust the trip current and time, providing flexibility and customization for different load types.
• High Breaking Capacity: Capable of interrupting very large fault currents without damage.
• Durability: The molded case provides excellent protection against physical damage and environmental factors.

Advantages of RCCB

• Unparalleled Shock Protection: The most effective device for preventing fatal electric shocks from ground faults.
• High Sensitivity: Can detect extremely small leakage currents that conventional circuit breakers would miss.
• Protects from Fire Hazards: Earth leakage faults are a common cause of electrical fires, and an RCCB can prevent this by tripping the circuit.
• Essential for Safety Regulations: In many regions, RCCBs are mandatory for certain circuits, especially in residential and commercial buildings.

Which Is Better: MCCB or RCCB?

The question isn’t which is “better,” but rather which is the right tool for the job. They serve different, complementary functions.

• Choose an MCCB for protecting circuits from overcurrents and short circuits, especially in high-power applications. It’s your first line of defense for equipment and wiring.
• Choose an RCCB for protecting people from electric shock and for preventing fires caused by earth leakage. It’s a critical personal safety device.

For a truly safe and compliant electrical system, you should use both. The MCCB handles the high-current faults, while the RCCB handles the life-threatening leakage currents. They work together to provide comprehensive protection.

MCCB and RCCB in Panel Boards

In a typical electrical panel board, the MCCB is often used as the main incoming breaker, providing overcurrent protection for the entire system. RCCBs are then used on individual outgoing circuits or groups of circuits where shock protection is critical (e.g., lighting circuits, circuits for power outlets). This tiered approach ensures maximum safety and efficiency.

Conclusion

At NUOMAK, we believe that safety should never be compromised. Both MCCB and RCCB are essential components of a modern electrical system, each with its own unique role. By understanding their functions, you can make informed decisions to protect your property and, most importantly, the people within it. For high-quality, reliable circuit breakers and expert advice, trust NUOMAK to power your projects safely.

FAQs

1. Can an RCCB be used as a main breaker?

An RCCB can be used as a main breaker, but it will only protect against earth leakage. For comprehensive protection, it must be installed in conjunction with an MCCB or MCB to protect against overloads and short circuits.

2. What is the difference between an RCCB and an RCBO?

An RCBO (Residual Current Circuit Breaker with Overcurrent protection) combines the functions of an RCCB and an MCB into a single device. It protects against overloads, short circuits, and earth leakage, making it a very compact and convenient solution.

3. How often should I test my RCCB?

It’s recommended to press the “test” button on your RCCB at least once a month to ensure it’s operating correctly. This simulates a ground fault and should cause the device to trip.

4. Can I install an MCCB and an RCCB myself?

Electrical installation should always be performed by a qualified and licensed electrician. Working with high-voltage electricity is extremely dangerous and requires professional expertise to ensure safety and compliance with all regulations.

5. How do I choose the right current rating for an MCCB?

The current rating of an MCCB should be chosen based on the maximum current draw of the circuit it is protecting. An electrician can perform a load calculation to determine the appropriate rating.
