What Is A Molded Case Circuit Breaker Mccb Guide

Molded Case Circuit Breakers (MCCBs) are vital components in modern electrical systems, providing essential protection against overloads, short circuits, and ground faults. Whether you’re designing a residential panel or managing an industrial power distribution network, understanding how an MCCB works—and why it’s used—is crucial for ensuring safety and operational reliability. In this guide, we’ll explain what a molded case circuit breaker is, how it functions, and why it’s a preferred choice over other circuit protection devices in high-capacity applications.

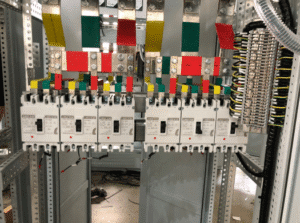

What Is a Molded Case Circuit Breaker (MCCB)?

A Molded Case Circuit Breaker (MCCB) is a type of electrical protection device designed to automatically interrupt circuits to prevent damage caused by overcurrent, which may result from short circuits, overloads, or ground faults. The term “molded case” refers to the robust, insulated housing that encloses the internal components of the breaker. This casing, typically made from molded plastic, provides both electrical insulation and mechanical protection for the internal mechanisms. MCCB circuit breakers are capable of handling a broad range of current ratings—typically from 15 to 2,500 amperes—and are used in applications that require greater capacity and advanced protection compared to standard miniature circuit breakers (MCBs).

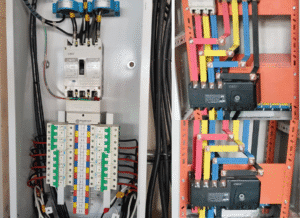

MCCBs play a vital role in electrical systems by ensuring the safety and reliability of power distribution. They safeguard equipment and infrastructure from faults that could lead to fire hazards, equipment failures, or significant downtime. In industrial, commercial, and residential environments, the ability of molded case circuit breakers to provide fast and accurate interruption during fault conditions is essential for maintaining operational stability. Their versatility allows them to be used across a wide range of applications—from simple home circuits to complex industrial power systems. Additionally, MCCBs help maintain overall system efficiency by allowing for quick and controlled restoration of power once the fault has been resolved.

4 Steps of  MCCBs Working Principle

Function	What It Does	When It Activates
Normal Operation	Allows normal current flow	When current is within safe limits
Overload Protection	Trips the circuit slowly using heat	When current is too high for too long
Short-Circuit	Trips the circuit instantly using magnetic force	When a sudden surge of current occurs
Ground Fault	Detects leakage and breaks the circuit	When current flows to the ground abnormally

Normal Operation

During normal operation, a molded case circuit breaker (MCCB) allows electrical current to pass through its contacts to the connected load without interruption. The internal components—such as the bimetallic strip and the magnetic coil—remain inactive as long as the current remains within the safe operating range. Designed to handle the rated current, the MCCB ensures efficient power transmission. The molded case insulates and protects the internal parts from external factors like dust, moisture, and mechanical damage. In this state, the MCCB functions as a closed switch, enabling continuous electrical flow while remaining ready to respond instantly to any abnormalities.

Overload Protection

Overload protection in an MCCB is achieved through a thermal trip mechanism. This mechanism uses a bimetallic strip that bends in response to heat generated by excessive current. When the current exceeds the rated limit over an extended period, the heat causes the strip to deflect and trigger the trip mechanism, breaking the circuit. This thermal response protects against prolonged overcurrent conditions that could otherwise lead to overheating, fire, or equipment damage. The MCCB remains tripped until manually reset, ensuring the issue is addressed before the circuit is restored.

Short-Circuit Protection

For short-circuit protection, MCCBs employ a magnetic trip mechanism. This system includes a solenoid coil that generates a magnetic field when an extremely high current flows through the circuit—such as during a short circuit. The rapid increase in magnetic force causes a plunger or armature to move and activate the trip mechanism almost instantly, opening the contacts and stopping the electrical flow. This fast action is essential for minimizing the severe damage caused by the high energy and heat generated in a short circuit, protecting both the electrical system and connected devices.

Ground Fault Protection

Ground fault protection is an additional function available in some MCCBs, designed to detect and respond to situations where current unintentionally flows to the ground. These faults can be caused by insulation breakdown or accidental contact with grounded objects. MCCBs with this feature are equipped with a residual current device (RCD) or ground fault sensor, which constantly monitors the current balance between the live and neutral wires. Under normal conditions, these currents are equal. If an imbalance is detected, indicating a ground fault, the sensor triggers the trip mechanism to break the circuit. This protection is especially critical for preventing electric shocks, equipment damage, and electrical fires, particularly in areas where human safety is a primary concern.

Conclusion

In summary, a Molded Case Circuit Breaker (MCCB) is an essential protective device in modern electrical systems. It provides reliable protection against overloads, short circuits, and ground faults, ensuring the safety and continuity of electrical power distribution. With its durable molded case design, wide current range, and responsive trip mechanisms, the MCCB circuit breaker is widely used across residential, commercial, and industrial applications. Understanding what a molded case circuit breaker is and how it works is crucial for selecting the right protection device for your electrical infrastructure.
