What Does A Standard Molded Case Circuit Breaker Contain

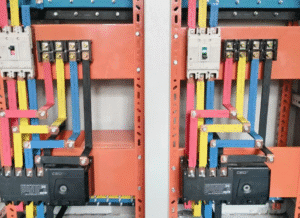

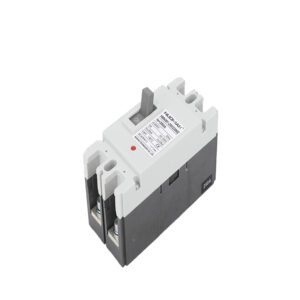

A molded case circuit breaker (MCCB) is a vital component in modern electrical protection systems. It combines robust construction with intelligent internal mechanisms to safeguard circuits from overloads, short circuits, and other electrical faults. But what does a standard molded case circuit breaker contain? To understand how an MCCB works and why it is so effective, it’s important to look at its core components. From the molded casing to the trip unit, each part plays a specific role in ensuring reliable and safe operation.

4 Components of a Molded Case Circuit Breaker

Component	Description	Function
Molded Case	Protective outer shell made of high-strength insulating plastic	Provides mechanical protection, electrical insulation, and environmental shielding
Operating Mechanism	Includes toggle handle or push-button and internal levers, springs, latches	Opens and closes contacts to control current flow, allows manual on/off switching
Contacts	Physical components that open/close to allow or interrupt current flow	Complete or break the electrical circuit; made to withstand high temperatures and arcing
Trip Unit	Detects faults and triggers breaker trip; includes thermal, magnetic, and optional electronic types	Protects against overloads (thermal), short circuits (magnetic), and advanced faults (electronic)

Molded Case

The molded case is the protective outer shell of the molded case circuit breaker. Made from high-strength, insulating plastic, it serves multiple functions. It offers physical protection to the internal components against mechanical impacts and shields them from environmental elements such as dust and moisture.

In addition, the molded case provides electrical insulation, preventing accidental contact with live parts. Its durability ensures the reliability and safety of the MCCB, allowing it to function effectively in various operating environments. This robust casing helps maintain the integrity of internal components even under harsh conditions.

Operating Mechanism

The operating mechanism is responsible for opening and closing the electrical contacts to control the flow of current. It includes a toggle handle or push-button that allows users to manually switch the MCCB on or off.

Internally, the mechanism contains a series of levers, springs, and latches that enable rapid and reliable operation. When switched on, the contacts close to allow current flow. When a fault is detected or the device is manually turned off, the mechanism separates the contacts quickly, interrupting the current. The precision of this system is essential for the effective operation of the molded case circuit breaker.

Contacts

The contacts are key components within the MCCB that physically open and close to either permit or interrupt electrical current. In the “on” position, the contacts are closed to complete the circuit. When a fault occurs or the breaker is operated, the contacts open to stop the flow of electricity.

These contacts are made of materials capable of withstanding high temperatures and the electrical arcing that occurs during separation under load. Their quality and design directly affect the MCCB’s ability to safely interrupt high currents without being damaged.

Trip Unit

The trip unit is the control center of the MCCB. It detects fault conditions and activates the operating mechanism to open the contacts. There are three types of trip mechanisms commonly found in a standard molded case circuit breaker:

Thermal Trip Mechanism

This mechanism uses a bimetallic strip to provide overload protection. When excessive current flows for an extended time, the heat causes the strip to bend. Once enough deflection occurs, the trip mechanism activates, opening the contacts. This protects the circuit from damage caused by sustained overcurrent.

Magnetic Trip Mechanism

The magnetic trip mechanism responds to short circuits. It includes a solenoid coil that generates a strong magnetic field when high current surges occur. This field moves a plunger or armature, tripping the breaker almost instantaneously. It provides fast protection from short-circuit damage.

Electronic Trip Unit (Optional)

Some MCCB’s feature electronic trip units, which use microprocessors to monitor current flow in real time. These units allow for programmable settings, offering precise and flexible protection. In addition to overload and short-circuit protection, they can detect ground faults and arc faults. Many electronic trip units support remote monitoring and are ideal for critical or complex electrical systems.

Conclusion

Understanding what a standard molded case circuit breaker contains provides insight into how this device delivers comprehensive protection in electrical systems. Each component—from the molded case and operating mechanism to the contacts and trip unit—works together to ensure safety, durability, and performance. Whether in residential, commercial, or industrial applications, a well-designed molded case circuit breaker is essential for maintaining circuit integrity and preventing electrical damage.
