The Principle And Function Of Automatic Voltage Regulators

What is an Automatic Voltage Regulator?

An Automatic Voltage Regulator (AVR), also known as a Voltage Regulator (VR) or Automatic Voltage Stabilizer (AVS), is a power transformer that can convert frequently fluctuating voltage into a stable voltage for a load. An AVR can automatically adjust the voltage. When the voltage from your power transformer is unstable, your equipment can easily get damaged. Using an AVR to set the input and output voltages is the best way to protect your equipment. You can think of it as a smart “voltage bodyguard”: when the external power grid voltage fluctuates due to peak usage, the startup or shutdown of large equipment, or aging lines, it will immediately activate to ensure the voltage supplied to your valuable appliances (such as computers, refrigerators, air conditioners, and precision instruments) is stable and safe.

How an Automatic Voltage Regulator Works

The working principle of an AVR is to monitor the power grid voltage in real time, intelligently compare the current voltage with a set value, and then automatically correct the output voltage. This ensures that no matter how the external voltage fluctuates, the connected appliances receive stable and safe power.

The Main Functions of an Automatic Voltage Regulator

• Protecting against Overvoltage (Voltage too high): Overvoltage forces internal components (such as capacitors, chips, and motor coils) to operate in an overloaded state, leading to increased heat, insulation aging, and a significant reduction in equipment lifespan. It can even cause immediate burnout. For example, a refrigerator compressor is extremely vulnerable to damage from high voltage.
• Protecting against Undervoltage (Voltage too low): Undervoltage prevents equipment (especially motor-driven devices like air conditioners, refrigerators, and water pumps) from getting enough power to start and run properly. This can cause the current to increase dramatically (locked-rotor current), which leads to overheating and burning out the motor windings. This is the principle behind the saying, “low voltage burns the motor.”
• Eliminating Voltage Fluctuations: Frequent voltage fluctuations are like having your equipment constantly “gasping for air,” causing continuous stress on components and accelerating their fatigue and aging.

Additional Features of Automatic Voltage Regulators

In addition to stabilizing voltage, our regulator manufacturer adds several protective features to the basic functions of our voltage regulators to ensure the safety of both users and equipment, providing peace of mind.

These features include zero-voltage switching, voltage cutoff display, overload protection, output start/stop devices, frequency change protection, manual or automatic startup, and voltage cutoff.

Applications of Automatic Voltage Regulators

Because modern voltage regulators are automatic, they respond very quickly to voltage fluctuations. This allows them to adjust voltage requirements faster and more accurately. AVRs are used for various electrical devices, such as dedicated regulators for household TVs, refrigerators, and microwaves, as well as regulators for entire household power systems and appliances. Beyond household use, industrial-grade AVRs are used in almost all industrial environments and equipment, especially the highly accurate, high-power, maintenance-free non-contact regulators, which are highly trusted by users.

Application Field	Specific Application Scenarios	Requirements for the Regulator
Industrial Manufacturing	CNC machine tools, injection molding machines, robots, laser equipment	High stability, high reliability, strong impact resistance (typically servo-motor or non-contact types)
IT and Communications	Data centers, servers, base stations	Ultra-high precision, extremely fast response, zero interruption (non-contact electronic regulators are the top choice)
Medical	CT scanners, MRIs, biochemical analyzers	Ultra-high precision, pure output, low noise interference (medical-grade dedicated regulators)
Commercial Offices	POS systems, medical clinics, office equipment	Stability, durability (relay or servo types are chosen based on the value of the equipment)
Home Life	Air conditioners, refrigerators, computers, TVs	Cost-effectiveness, sufficient capacity (commonly relay or servo types)

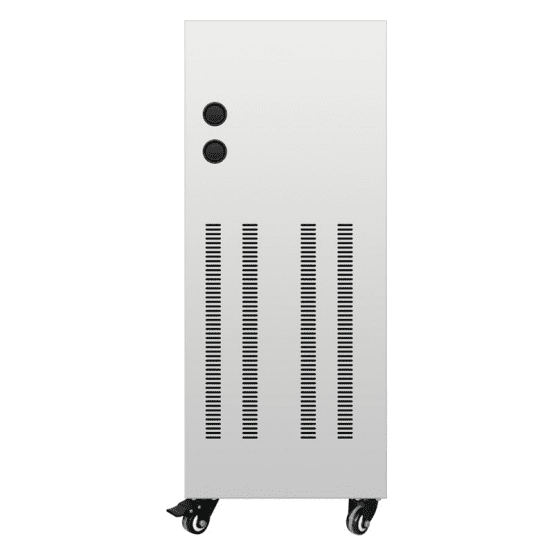

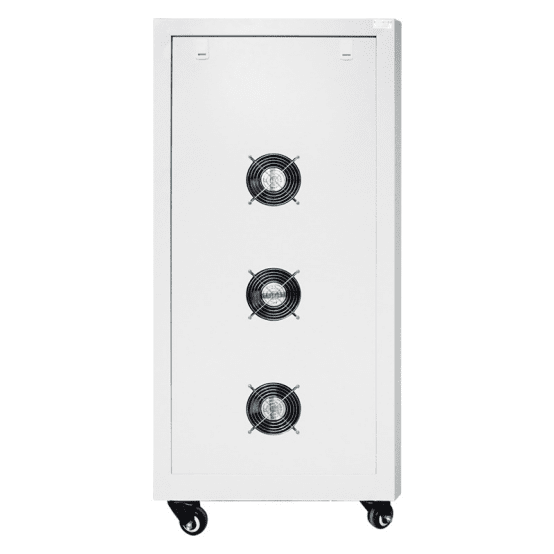

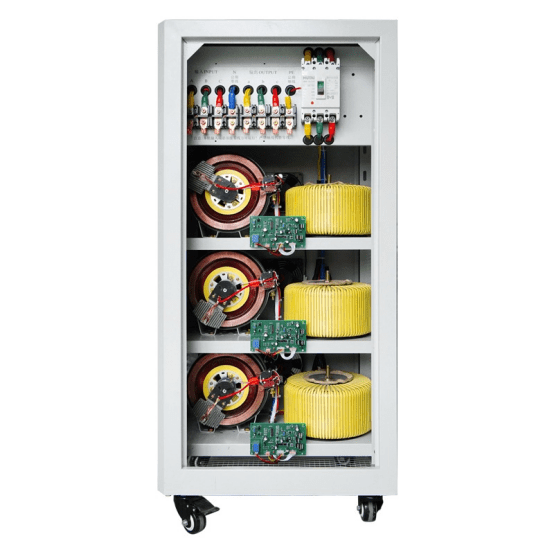

High-Quality Automatic Voltage Regulators Meet Market Demands Better

Voltage Regulation:

Optimal voltage regulation is achieved when the voltage is equal to the operating voltage of all electrical equipment. Several factors can influence voltage regulation, including the size and type of wires or cables, transformer reactance, the cables used in the transformer, circuit design, motor starters, and power factor. Despite all these potential issues, voltage regulation must be able to be set to an accuracy of ±1%. This will eliminate three-phase imbalance issues and minimize voltage deviation.

Load Compatibility:

An AVR must be compatible with the specified load of the equipment to ensure it operates at its best and to avoid interfering with other loads connected to the same power source. A high-performance AVR should always be able to handle loads with high starting currents. To prevent regulator instability, the regulator’s response speed must be designed to work with a variety of electronic power sources.

Low Impedance:

Impedance is the opposition of a substance to the flow of current, measured in ohms. The goal of an AVR is to have low impedance. When load current and source impedance interact, it can lead to low voltage, harmonic distortion, and voltage imbalance. Ideally, an AVR with low impedance will avoid all of these situations.

Voltage Accuracy:

AVRs make voltage levels accurate—that’s their primary job. However, the precision of the voltage depends on the requirements of the critical load.

Input Voltage Range:

The best AVRs have a specific input voltage range. The input voltage range must be wide and adaptable. This is because line voltage drops are more common than spikes. Therefore, a low correction can be selected over a high one.

Conclusion

The logic behind using an automatic voltage regulator is very clear: any electrical equipment that is more valuable than the regulator itself and requires stable operation is worth equipping with a suitable, high-quality AVR. It not only protects equipment components from overvoltage, undervoltage, and frequent voltage fluctuations but also ensures the stable operation of appliances in various settings, including homes, industries, medical facilities, and IT. Using a Nuomak voltage regulator is a smart choice that provides equipment safety at a small cost, avoiding huge financial losses and electrical risks. It also demonstrates a responsible attitude toward valuable equipment and precision instruments.
