The Importance Of Choosing High Quality Mccb

In industrial electrical systems, protection is key to ensuring the safety and longevity of both equipment and personnel. MCCBs (Molded Case Circuit Breakers) play a crucial role in safeguarding electrical circuits against overloads and short circuits. With various brands and qualities available in the market, selecting a high-quality MCCB is essential to ensure reliable performance, safety, and cost-effectiveness. This guide will walk you through the importance of choosing the right MCCB for your application.

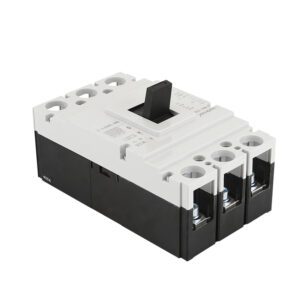

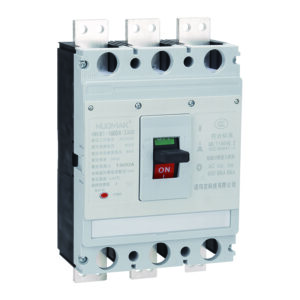

What is an MCCB?

An MCCB (Molded Case Circuit Breaker) is an electrical protection device designed to protect electrical circuits from overcurrent, short circuits, and overloads. Typically used in industrial and commercial environments, MCCBs are engineered to handle higher electrical capacities and provide greater protection than standard circuit breakers. These devices are adjustable, allowing users to set the level of protection they need based on the electrical load.

Benefits of High-Quality MCCB

Selecting a high-quality MCCB ensures your electrical system runs efficiently and safely. Here are the key benefits:

Overload and Short-Circuit Protection

MCCBs are essential for protecting circuits from overload conditions that could cause equipment damage or even fire hazards. By automatically interrupting the power supply when an overload or short circuit occurs, MCCBs ensure your electrical system remains safe.

Extended Equipment Lifespan

By providing reliable protection against electrical faults, high-quality MCCBs help extend the lifespan of sensitive equipment. With proper protection, equipment operates in a stable environment, reducing the risk of failure due to electrical surges.

Enhanced System Safety

A properly selected MCCB provides enhanced safety by preventing electrical hazards. This includes preventing damage to wires, preventing fires, and protecting personnel from electrical shock.

Reduced Maintenance Costs

With a high-quality MCCB, the likelihood of system failures and maintenance costs is reduced. These breakers are designed to function reliably and consistently, minimizing downtime and expensive repairs.

Key Features to Look For

When choosing an MCCB, it’s important to consider the following features to ensure reliable operation:

• Adjustable Trip Settings: Allows users to set specific current thresholds for overload protection.

• Thermal and Magnetic Protection: Provides both thermal protection (against prolonged overcurrent) and magnetic protection (against short circuits).

• High Interrupting Capacity: Ensures that the MCCB can handle high fault currents without damage.

• Long Operational Life: High-quality MCCBs are built to endure numerous operations and have a long service life.

• Compact Design: Easy installation in tight spaces while maintaining high performance.

Industrial Applications of MCCBs

MCCBs are widely used across various industries due to their ability to protect large-scale electrical systems. Some common applications include:

• Industrial Plants: Protect machinery and equipment from overcurrent.

• Power Distribution: Safeguard circuit breakers in transformers and substations.

• HVAC Systems: Ensure protection for motors and compressors in heating, ventilation, and air conditioning systems.

• Commercial Buildings: Protect electrical systems in large commercial buildings or office complexes.

How to Choose the Right MCCB

Choosing the right MCCB requires considering the following factors:

• Current Rating: Ensure the MCCB matches the maximum current your system will draw.

• Interrupting Capacity: Select an MCCB with sufficient interrupting capacity to handle potential fault currents.

• Type of Protection: Based on the equipment and environment, choose an MCCB that provides appropriate protection (thermal, magnetic, or both).

• Size and Installation: Check if the MCCB fits in the available space and complies with your installation requirements.

MCCB Installation Guide

Proper installation is key to ensuring an MCCB performs as expected. Here are the steps to follow:

1. Check Voltage and Current Ratings: Ensure the MCCB matches the system’s specifications.

2. Mounting: Install the MCCB in a panel with enough space for ventilation.

3. Wiring: Connect the incoming and outgoing cables securely.

4. Set Trip Settings: Adjust the trip settings based on your system’s needs.

5. Test Operation: After installation, test the MCCB to ensure it trips correctly during a fault condition.

MCCB Maintenance Tips

To ensure longevity and reliable performance of your MCCB, follow these maintenance tips:

• Regular Inspection: Periodically check for signs of wear, corrosion, or overheating.

• Test Tripping Mechanism: Regularly test the MCCB’s ability to trip in an overload or short-circuit situation.

• Clean the MCCB: Keep the MCCB clean and free from dust, dirt, and moisture.

• Check Connections: Ensure that all electrical connections are tight and free from corrosion.

Common MCCB Faults & Troubleshooting

While MCCBs are reliable, certain issues may arise:

• MCCB Does Not Trip: Could be due to faulty settings or a defective breaker. Reset or replace the MCCB as needed.

• Breaker Trips Too Often: This can be caused by incorrect trip settings or a malfunctioning MCCB. Verify settings and replace the MCCB if necessary.

• Physical Damage: If the MCCB shows signs of cracking or damage, replace it immediately to avoid failure.

Why Choose Nuomak?

When choosing an MCCB, reliability is key. Nuomak, known for its high-performance circuit breakers, provides MCCBs designed for long-lasting and highly reliable protection. Their MCCBs meet international standards and are widely used in industrial settings. With adjustable trip settings, high interrupting capacity, and durability, Nuomak MCCBs are engineered to protect your systems and extend the life of your equipment.

FAQs

What is the lifespan of an MCCB?
A high-quality MCCB can last up to 10-15 years with proper maintenance.

How do I choose the right MCCB size?
The size should be based on the maximum current your system draws and the fault current it may experience.

Conclusion

Choosing the right MCCB is crucial to ensuring the safety, reliability, and cost-effectiveness of your electrical systems. High-quality MCCBs, like those from Nuomak, offer superior protection and durability, extending the lifespan of your equipment while reducing maintenance costs.
Explore Nuomak’s range of MCCBs and experience the difference in safety and performance. Visit our website for more details.
