How To Choose Between 1600a Mccb And Acb Key Differences

In low-voltage power distribution systems, 1600A circuit breakers are typically used as critical protection devices. Faced with this 1600A current rating, engineers often struggle with the choice between molded case circuit breakers (MCCBs) and automatic circuit breakers (ACBs). Although these two types may have the same rated current, they differ significantly in design philosophy, performance, and application scenarios.

Core Differences: Structure and Design Philosophy

Understanding the fundamental differences between 1600A molded case circuit breakers (MCCBs) and standard circuit breakers (ACBs) is the first step in making the right choice.

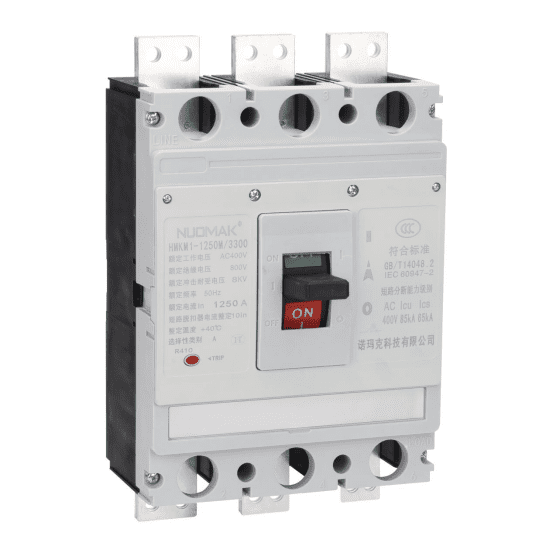

1600A Molded Case Circuit Breaker (MCCB): As the name suggests, its casing is made of high-performance engineering plastic, encapsulating the contacts, arc-extinguishing system, and other components in a compact, sealed, insulated compartment. This design emphasizes safety, current limiting, and rapid breaking, with a relatively integrated structure, aiming to provide economical and compact protection for distribution circuits and equipment.

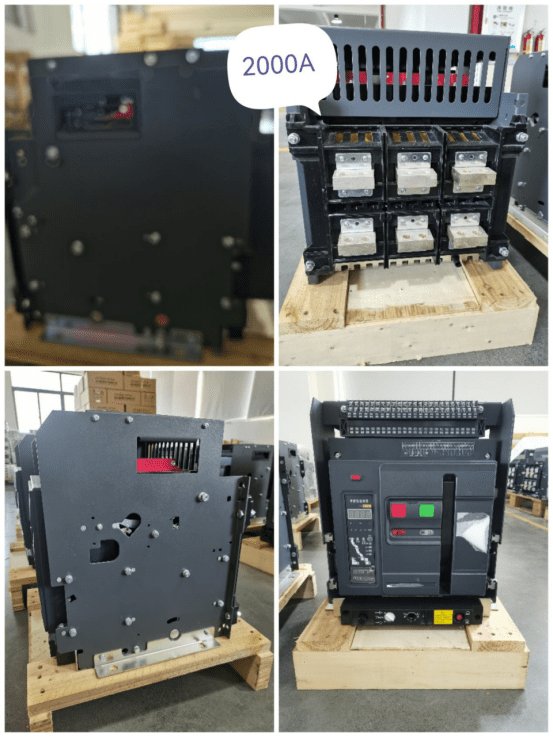

1600A Standard Circuit Breaker (ACB): Also known as a “universal circuit breaker,” it adopts a modular frame structure. Its main body is a metal frame, with the contact system, intelligent trip unit, operating mechanism, drawer base, and other components installed as independent modules. This design makes its functions more complete, its expandability stronger, and it has a high short-time withstand capability, enabling selective protection with downstream electrical appliances; however, it is usually also larger in size.

Selection Guidelines: Three Key Principles

After understanding the basic differences, decisions can be made in actual projects based on the following three principles:

1. Safety Principle: Breaking Capacity and Short-Time Withstand Capacity

First, regardless of whether it’s a molded case circuit breaker or a frame circuit breaker, its breaking capacity must exceed the expected maximum short-circuit current at the installation point. This is a mandatory requirement. Second, in systems requiring selective protection—that is, when a fault occurs in a downstream line, only the circuit breaker closest to the fault point trips, while the upstream circuit breaker remains closed—the upstream circuit breaker needs sufficient short-time withstand current (Icw). Frame circuit breakers have a natural advantage in this regard. If the short-time withstand capacity of a molded case circuit breaker (e.g., 19.2kA/1s) meets the system’s selectivity requirements, it can also be considered.

2. Functionality and Reliability Principles

Protection Complexity: If the circuit only requires basic overload and short-circuit protection, a molded case circuit breaker may be sufficient. If complex protection curves, parameter adjustments, ground fault protection, or power quality monitoring are required, a frame circuit breaker is a better choice.

Power Continuity Requirements: In locations with extremely high power continuity requirements, such as data centers, hospitals, and factories with continuous production lines, the selective protection and drawer-type “crank-in, crank-out” design of molded case circuit breakers can significantly shorten fault recovery time and improve system reliability.

3. Economy and Space Principles

Cost: Under the premise of meeting performance requirements, molded case circuit breaker solutions are generally more cost-effective. This includes not only the price of the equipment itself, but also the overall cabinet cost savings resulting from its smaller footprint within the cabinet.

Space: For power distribution boxes or compact switchgear with limited space, molded case circuit breakers are the ideal choice.

Application Scenarios and Brand Product Analysis

Typical Applications of 1600A Molded Case Circuit Breakers:

Main switches for floor or area distribution boxes in large commercial buildings and hotels.

Protection circuits for 1600A-class motors such as large water pumps and fans.

Incoming line switches for data center power distribution cabinets.

Typical Applications of 1600A Frame Circuit Breakers:

Main incoming line switches for transformer outputs in the main power distribution rooms of buildings, factories, and data centers.

Input switches for large UPS and critical load distribution cabinets.

Main power distribution systems in heavy industries such as metallurgy and chemical engineering.

Conclusion

In summary, while both 1600A MCCBs and ACBs share the same current rating, they serve different roles. MCCBs are compact and cost-effective for standard distribution circuits, while ACBs offer higher protection flexibility and stronger short-time withstand capability for main power systems and critical loads.

NUOMAK provides both 1600A MCCB and ACB product solutions. For project-based selection guidance, feel free to contact our technical support team.
