Guide To Distribution Box Types

In any electrical system, the distribution box is the heart and brain, a critical component that safely manages and distributes power from the main source to various circuits. Whether you’re working on a residential building, a commercial facility, or a large industrial plant, understanding the different types of distribution boxes is essential for safety, efficiency, and long-term reliability.

As a leader in electrical solutions, NUOMAK is committed to providing not only high-quality products but also the knowledge you need to make informed decisions. This guide will walk you through the most common distribution box types, their functions, and how to choose the right one for your specific needs.

What is a Distribution Box?

At its core, a distribution box, also known as a distribution board, panelboard, or fuse box, is a protective enclosure that houses all the electrical components that control and protect the circuits in a building. It receives a single, high-amperage power feed and divides it into multiple lower-amperage circuits, each protected by a fuse or circuit breaker. This system allows you to manage different parts of your electrical load independently and, most importantly, provides crucial protection against overcurrents and short circuits, preventing damage to equipment and, most importantly, fires.

Key Types of Distribution Boxes

While they all serve the same fundamental purpose, distribution boxes are designed and categorized based on their application, size, and the level of power they handle.

1. Main Distribution Board (MDB)

The Main Distribution Board (MDB) is the primary control panel for an entire building or facility. It is the first point of power distribution after the utility service entrance or the main transformer.

• Function: The MDB receives a high-voltage, high-amperage electrical supply and distributes it to several sub-distribution boards (SDBs) and other major electrical loads. It typically contains the main incoming breaker, busbars, and outgoing feeders.
• Application: You will find MDBs in large commercial buildings, industrial factories, high-rise residential complexes, and power plants.
• Key Characteristics: MDBs are designed to handle very high fault currents and are custom-built to meet the specific requirements of a large-scale project. They are often large, floor-standing enclosures.

2. Sub Distribution Board (SDB)

A Sub Distribution Board (SDB) works in tandem with the MDB. It’s a secondary panel that takes power from the MDB and further distributes it to specific areas or zones within a building.

• Function: An SDB breaks down the power from a main feeder into smaller circuits for a specific floor, section of a building, or a group of machinery. This provides localized control and protection.
• Application: SDBs are used on different floors of an office building, in different departments of a factory, or in specific wings of a hospital.
• Key Characteristics: SDBs are smaller than MDBs and offer more granular control, making it easier to isolate and troubleshoot issues in a particular area without affecting the entire system.

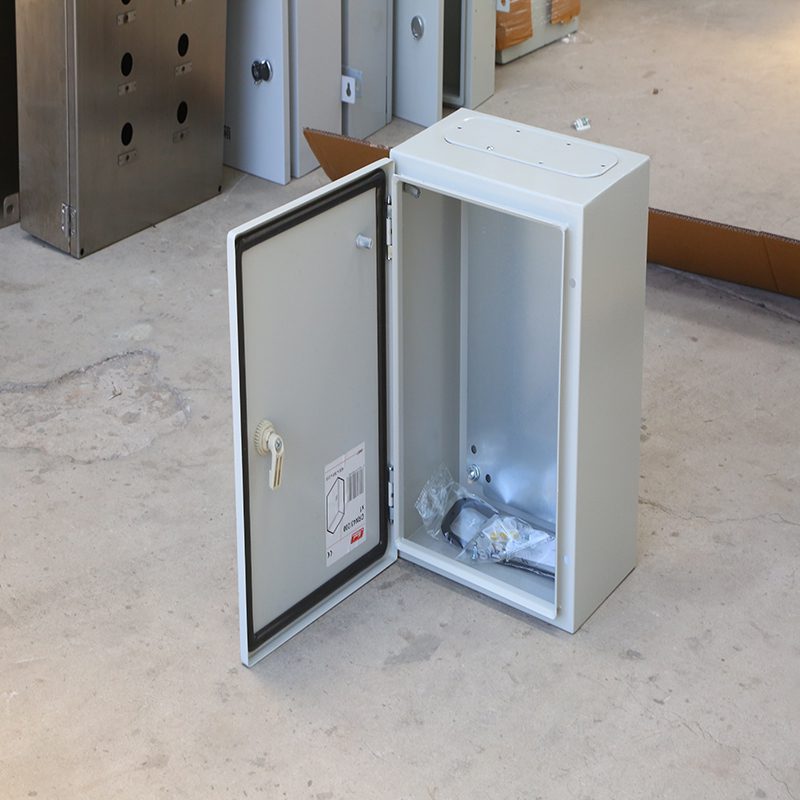

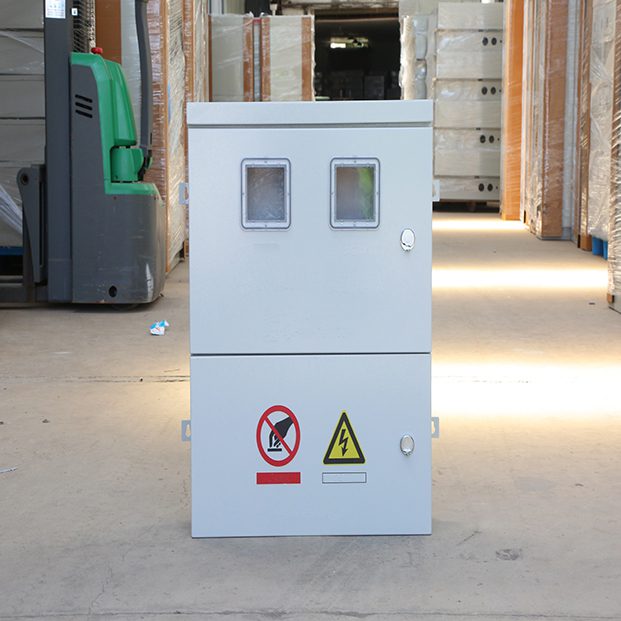

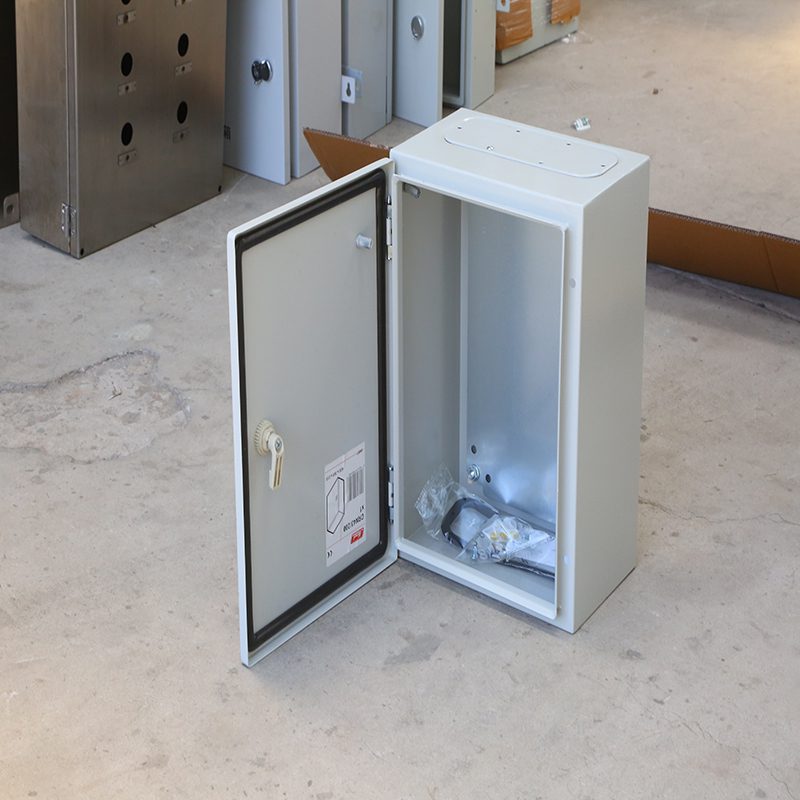

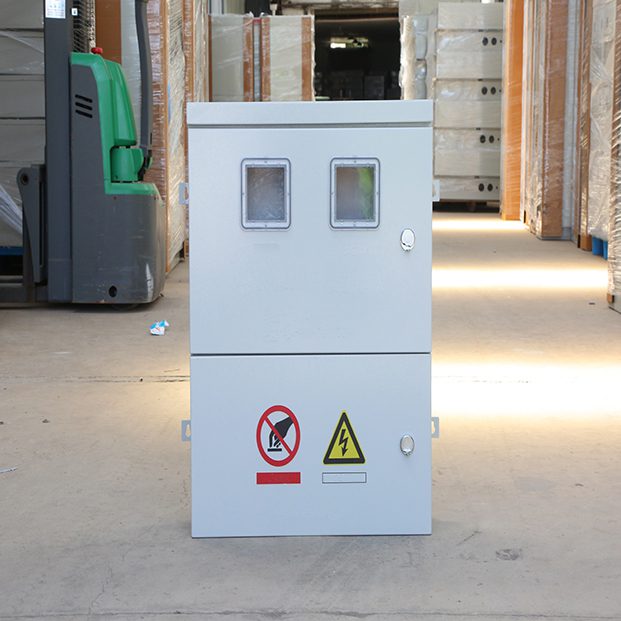

3. Meter Panel

A Meter Panel is exactly what it sounds like—a panel designed to house the electricity meter. It is a critical link in the power chain, as it is where the utility company measures and records power consumption.

• Function: The meter panel provides a safe and secure location for the utility meter and often includes a main breaker to disconnect power to the entire property.
• Application: Found in virtually all residential, commercial, and industrial settings where a power connection is required.
• Key Characteristics: Meter panels are built to specific utility standards and are often the point of demarcation between the utility’s equipment and the customer’s electrical system.

4. Panel Fuse Bank

A Panel Fuse Bank, or simply a fuse box, is an older type of distribution panel that uses fuses as its overcurrent protection device.

• Function: When a circuit is overloaded, the thin metal wire inside a fuse melts and breaks the circuit. This prevents the flow of electricity and protects the wiring and equipment. To restore power, the blown fuse must be replaced.
• Application: Fuse banks are less common in new construction but are still found in many older homes and some specialized industrial applications.
• Key Characteristics: While reliable, fuse banks are not resettable. This means you must keep spare fuses on hand and are a less convenient option compared to modern circuit breakers.

5. Unitized Panel

A Unitized Panel is a modular type of switchgear or distribution panel designed for specific, high-power applications. It is often a pre-assembled, self-contained unit.

• Function: Unitized panels combine various electrical components—such as circuit breakers, metering, and control devices—into a single, compact, and ready-to-install unit.
• Application: They are often used in industrial settings, data centers, or renewable energy projects (e.g., solar farms) where space is limited and installation time is critical.
• Key Characteristics: These panels offer significant advantages in terms of installation speed and a smaller footprint, as they are assembled and tested in the factory before being shipped to the site.

6. Transfer Switch

A Transfer Switch is a specialized device that safely switches a building’s electrical load from one power source to another.

• Function: It is most commonly used to transfer a building’s power supply from the primary utility grid to a backup generator during a power outage. A transfer switch prevents dangerous backfeeding of power into the grid.
• Application: Essential for any facility that requires an uninterruptible power supply, such as hospitals, data centers, and critical manufacturing plants.
• Key Characteristics: Transfer switches can be either manual (requiring an operator to flip a switch) or automatic (detecting a power outage and switching to the backup source instantly).

7. Consumer Unit

A Consumer Unit, also known as a fuse board or breaker box, is the standard distribution box used in residential and small commercial buildings.

• Function: It serves as the central control for all the electrical circuits in a home, distributing power to lights, outlets, and appliances. Unlike a fuse bank, a modern consumer unit uses resettable circuit breakers, making it much more convenient to use.
• Application: The primary electrical panel in almost every modern home, apartment, and small office.
• Key Characteristics: Consumer units are compact and user-friendly. They typically include a main switch, a series of circuit breakers (MCBs or RCBOs), and often a Residual Current Device (RCD) for enhanced safety against electric shocks.

8. Enclosed Switchgear

Enclosed Switchgear refers to a broad category of electrical panels that house switching and protective devices (like circuit breakers and fuses) within a fully enclosed metal cabinet.

• Function: It provides a safe, central location for controlling, protecting, and isolating electrical circuits, particularly in medium- and high-voltage applications. The metal enclosure protects the components from the environment and provides a critical layer of safety for personnel.
• Application: Enclosed switchgear is a cornerstone of utility substations, large industrial facilities, and commercial buildings with high power demands.
• Key Characteristics: This category is defined by its robust, fully enclosed design. It can be further sub-classified into types like metal-clad or metal-enclosed switchgear, depending on the internal compartmentalization and safety features.

How to Choose the Right Distribution Box Type

Choosing the correct distribution box is a crucial decision that impacts the safety, functionality, and cost of your electrical system. Here are the key factors to consider:

• Application: The first and most important question is: what is the purpose of this panel?
  • Residential or small commercial: A Consumer Unit is the standard choice.
  • Large commercial or industrial: You will need a tiered system with a Main Distribution Board (MDB) feeding multiple Sub Distribution Boards (SDBs).
  • Power generation or critical infrastructure: Enclosed Switchgear and Transfer Switches are essential for control and reliability.
• Voltage and Current Ratings: Always ensure the distribution box is rated for the voltage and amperage of your electrical system. This includes the main incoming supply as well as the outgoing circuits.
• Safety Features: Look for panels that include modern safety features like Residual Current Devices (RCDs) or Arc Fault Circuit Interrupters (AFCIs). Our NUOMAK products are designed with the latest safety standards in mind to protect both your equipment and your personnel.
• Space and Installation: Consider the physical space available. A compact Unitized Panel might be a better choice for tight spaces, while a larger MDB will require a dedicated electrical room.
• Future Expansion: It’s wise to choose a distribution box with spare slots or additional capacity to accommodate future needs, such as adding new equipment or circuits.

Conclusion

Understanding the diverse world of distribution boxes is the first step toward building a safe, efficient, and reliable electrical system. From the robust MDBs of industrial plants to the compact Consumer Units of our homes, each type plays a vital role in our modern world.

At NUOMAK, we offer a wide range of distribution boxes and panels for every application, designed and manufactured to the highest standards of quality and safety. We are here to help you select the perfect solution for your project, ensuring seamless power distribution for years to come.

FAQs

What’s the main difference between a fuse box and a circuit breaker panel?

A fuse box uses single-use fuses that melt to break a circuit, requiring replacement. A modern circuit breaker panel (consumer unit) uses resettable circuit breakers that you can simply reset with a switch.

 What is the purpose of an RCD in a consumer unit?

An RCD (Residual Current Device) is a life-saving safety device that detects a small imbalance in the electrical current, which can be an early sign of a ground fault or electric shock. It quickly shuts off the power to prevent serious injury.

Why is a Transfer Switch so important for critical facilities?

A transfer switch is crucial for ensuring continuity of power. It safely and automatically switches the power source from the main utility grid to a backup generator when an outage occurs, preventing any downtime for critical systems.

Can I install a distribution box myself?

It is strongly recommended that a certified and licensed electrician handle the installation of any distribution box. Electrical work is dangerous, and an improper installation can lead to serious safety hazards.
