Electronic Mccbs Core Guardian Of Smart Power Distribution

In today’s buildings, factories, and data centers, electricity is not just an energy source, but the lifeblood of operations. How can we ensure this lifeblood flows unimpeded, securely and controllably? When circuits experience overloads or short circuits, how do we achieve “precise fault isolation while ensuring uninterrupted power supply overall”? Traditional one-size-fits-all circuit breakers can no longer meet these demands. The answer lies in the Electronic Molded Case Circuit Breaker (MCCB)—a silent yet powerful core guardian in intelligent power distribution systems.

What is an Electronic MCCB?

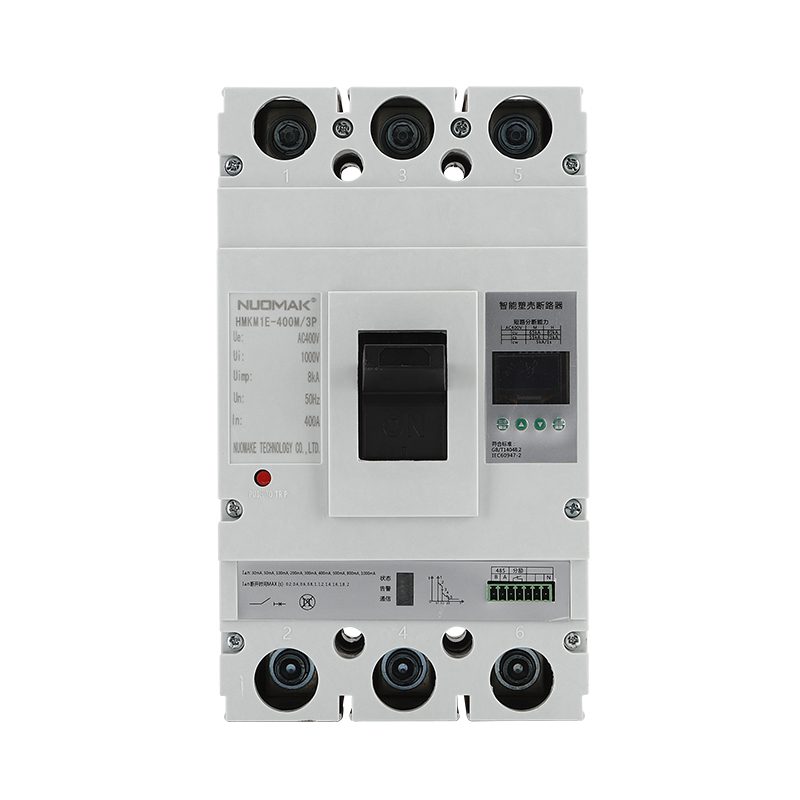

An Electronic MCCB is an intelligent switching device built upon the foundation of traditional MCCBs, integrating microprocessors and current sensors. Unlike conventional breakers that rely solely on the mechanical properties of bimetallic strips and electromagnets, it achieves unprecedented precision in protection and intelligent control by “sensing” current and “calculating” parameters.

How Does It Work?

Its operational process follows a typical “Sense-Compute-Actuate”

1. Sense (Sampling):Internal high-precision Current Transformers (CTs) continuously monitor the current waveform within the circuit.
2. Compute (Analysis):The microprocessor analyzes the sampled data and compares it against multiple protection parameters preset by the user.
3. Judgment and Execution:

• No action is takenif the current remains within the safe range.
• Upon detecting an abnormality (such as overload or short circuit), the processor determines the fault type and level, then issues a command at the optimal moment to drive the operating mechanism and trip the circuit.

The 3 Core Advantages of Electronic MCCBs



1. Precise Protection and Adjustability

• Traditional circuit breakers:Lack the ability to adapt their fixed protection characteristics to special loads.
• Electronic Circuit Breakers:Users can flexibly and precisely set the current values and tripping times for long-time delay, short-time delay, instantaneous, and ground fault protection based on actual circuit conditions, truly achieving “tailor-made” protection.

2. Superior Selective Protection

This is its most critical value! In a graded power distribution system, by precisely setting the tripping time difference between upstream and downstream circuit breakers, it ensures that always the breaker closest to the fault point operates, while the upstream breaker remains closed.

Benefit: It confines the power outage to the smallest possible area, ensures the power continuity of critical loads, and significantly enhances system reliability.

3. Excellent Adaptability

It is capable of handling various complex application scenarios, such as protecting motors (avoiding high inrush currents), generator circuits, and capacitor compensation banks, and can be perfectly adapted through parameter configuration.

Typical Application Scenarios

• Smart Buildings:Serving as the main incoming line switch and critical floor distribution switches.
• Data Centers / Hospitals:In these facilities with extremely high demands for power continuity, selective protection is relied upon to prevent facility-wide power outages.
• Industrial Plants:Protecting expensive large-scale production equipment (such as machine tools, compressors) and monitoring the energy consumption of each production line.
• New Energy Sector:Grid integration and protection for photovoltaic power stations and charging stations.

Conclusion

The Electronic MCCB has long transcended its role as a simple “switch.” It serves as a cornerstone for building safe, reliable, continuous, and intelligent modern power distribution systems. Investing in it is not just an investment in protection, but also in operational efficiency, management convenience, and future insight. As the wave of intelligence sweeps across all industries, deploying this intelligent “Core Guardian” to protect your power system is undoubtedly a critical step toward Industry 4.0 and smart buildings.
