Difference Between Mcb And Mccb

When it comes to protecting electrical circuits, two devices are commonly used: Miniature Circuit Breakers (MCB) and Molded Case Circuit Breakers (MCCB). While they both perform a similar function, understanding their differences is crucial for ensuring the safety and efficiency of your electrical system.

As a leading provider of high-quality electrical components, NUOMAK is here to help you navigate these choices. This guide will walk you through what MCBs and MCCBs are, their key differences, and how to choose the right one for your needs.

What is an MCB?

An MCB, or Miniature Circuit Breaker, is an electromechanical device designed to protect a low-voltage electrical circuit from damage caused by an overload or short circuit. It automatically switches off the circuit when it detects an excessive current.

MCBs are typically used in residential and small commercial applications, protecting household appliances and lighting circuits. They are designed for lower current ratings, usually up to 100 amps.

What is an MCCB?

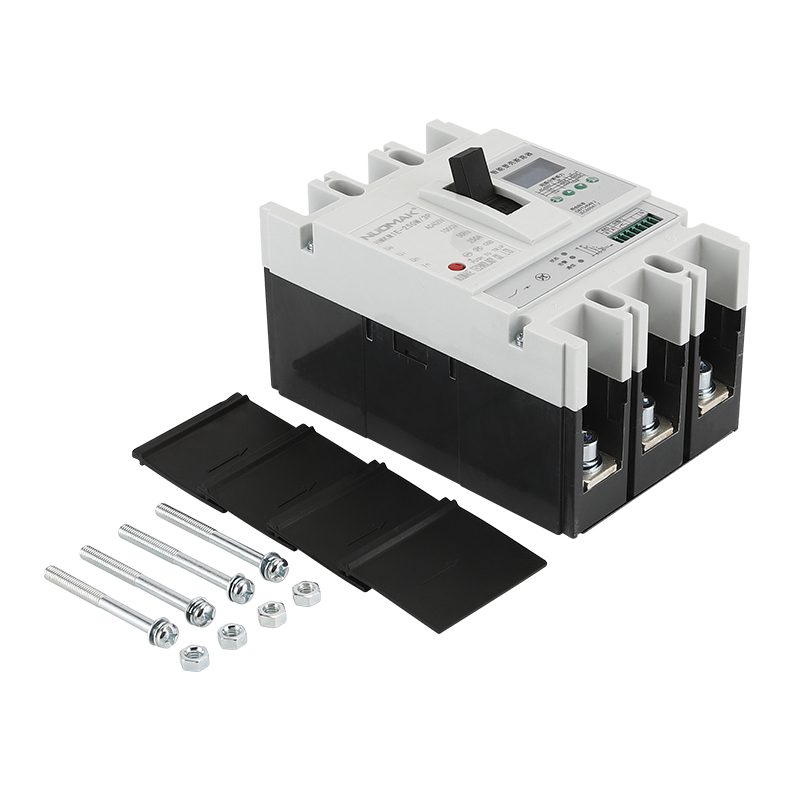

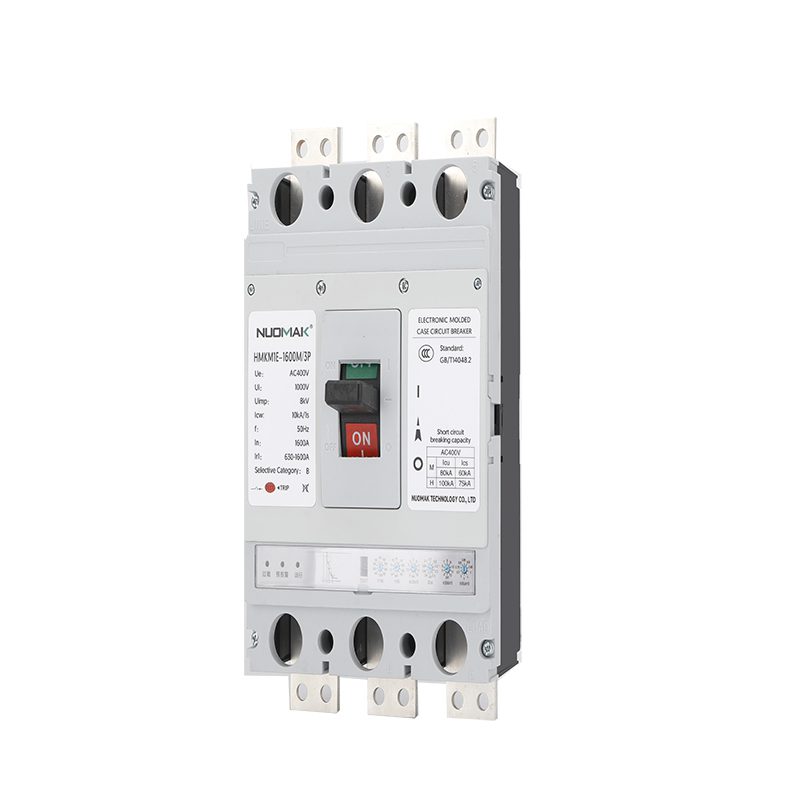

An MCCB, or Molded Case Circuit Breaker, is a protective device used to safeguard electrical circuits from overcurrent, short circuits, and ground faults. Unlike MCBs, MCCBs have a higher current rating and a more robust design, making them suitable for larger electrical systems.

MCCBs are found in industrial, commercial, and large-scale residential settings. They can handle a wider range of current ratings, from as low as 10 amps to as high as 2,500 amps.

MCB vs MCCB: Main Differences

While both devices are designed for circuit protection, their differences lie in their design, performance, and application.

4-1. Design

• MCB: Made from a standardized, compact, and non-adjustable molded case. They are available in fixed current ratings.
• MCCB: Housed in a much larger, sturdier, and customizable molded case. The trip current setting is often adjustable, providing greater flexibility.

4-2. Current Rating

• MCB: Typically available with a current rating of up to 100 amps.
• MCCB: Can handle a much higher range, from 10 amps to 2,500 amps.

4-3. Breaking Capacity

The breaking capacity is the maximum current a circuit breaker can safely interrupt without being damaged.

• MCB: Has a lower breaking capacity, typically up to 10 kA.
• MCCB: Features a significantly higher breaking capacity, ranging from 10 kA to 200 kA, making it suitable for applications with high fault current levels.

4-4. Protection Mechanism

• MCB: Provides protection against thermal overload (using a bimetallic strip) and short circuits (using an electromagnetic coil). These settings are fixed by the manufacturer.
• MCCB: Offers more advanced and often adjustable protection. It uses a thermal mechanism for overload protection and a magnetic or electronic trip unit for short-circuit protection. The trip settings can be customized for specific circuit requirements.

4-5. Installation Method

• MCB: Typically mounted on a DIN rail, making installation quick and easy.
• MCCB: Installed using bolts or screws, requiring a more permanent and secure mounting method due to its larger size and weight.

4-6. Application

• MCB: Best suited for residential and small commercial applications, such as home wiring, lighting, and low-power circuits.
• MCCB: Ideal for industrial, commercial, and heavy-duty applications, including main power distribution panels, large motors, generators, and transformer circuits.

4-7. Maintenance and Cost

• MCB: Generally maintenance-free and less expensive. If an MCB fails, it is typically replaced entirely.
• MCCB: More costly due to its advanced features and higher current ratings. However, some MCCBs have replaceable parts or can be reconditioned, offering a longer service life.

How to Choose Between an MCB and an MCCB

Choosing the right device comes down to your specific application’s requirements.

• For residential and small-scale applications with lower current needs (under 100 amps), an MCB is the most practical and cost-effective choice.
• For industrial, commercial, or high-power applications requiring higher current ratings, greater breaking capacity, and adjustable protection, an MCCB is the superior and necessary choice.

Always consult with a qualified electrician to assess your system’s needs and ensure the correct circuit breaker is installed. At NUOMAK, we provide a wide range of MCBs and MCCBs designed for safety, reliability, and performance.

Key Rated Parameters Explained

Understanding these parameters is key to selecting the correct circuit breaker.

• Rated Current (In​): The maximum continuous current the circuit breaker is designed to carry under normal operating conditions.
• Breaking Capacity (Icu​): The maximum current that the circuit breaker can safely interrupt. This is a crucial safety parameter.
• Rated Voltage (Un​): The voltage at which the circuit breaker is designed to operate.
• Trip Curve: A graph showing the relationship between trip time and current. This determines how quickly the breaker will trip in response to an overcurrent.

Conclusion

Both MCBs and MCCBs are essential safety devices that protect electrical circuits from damage. The fundamental difference lies in their design, current handling capacity, and application scope. While an MCB is perfect for everyday home use, an MCCB provides the robust, high-performance protection needed for complex industrial systems.

At NUOMAK, we are committed to providing you with the highest quality circuit protection solutions tailored to your needs.

FAQs

Can I replace an MCB with an MCCB?

No, you should not replace a standard MCB with an MCCB without a professional assessment. An MCCB is designed for different voltage and current levels and may not provide the correct level of protection for a residential circuit.

Do I need both MCBs and MCCBs?

In many larger electrical systems, you will find both. An MCCB often serves as the main power distribution breaker, protecting the entire system, while MCBs are used downstream to protect individual branch circuits.

How do I know the correct ampere rating for my application?

The ampere rating should be determined by a licensed electrician based on the total load of your circuit and the wire size used. Using a breaker with an incorrect rating can lead to fire hazards or equipment damage.
