Dc Molded Case Circuit Breakers Mccb

Today, we’re diving deep into a crucial component of modern electrical systems: the DC Molded Case Circuit Breaker, or DC MCCB. Whether you’re a seasoned professional or just starting out, this guide will provide you with a comprehensive understanding of what DC MCCBs are, how they work, and why they’re so vital for protecting your electrical infrastructure.

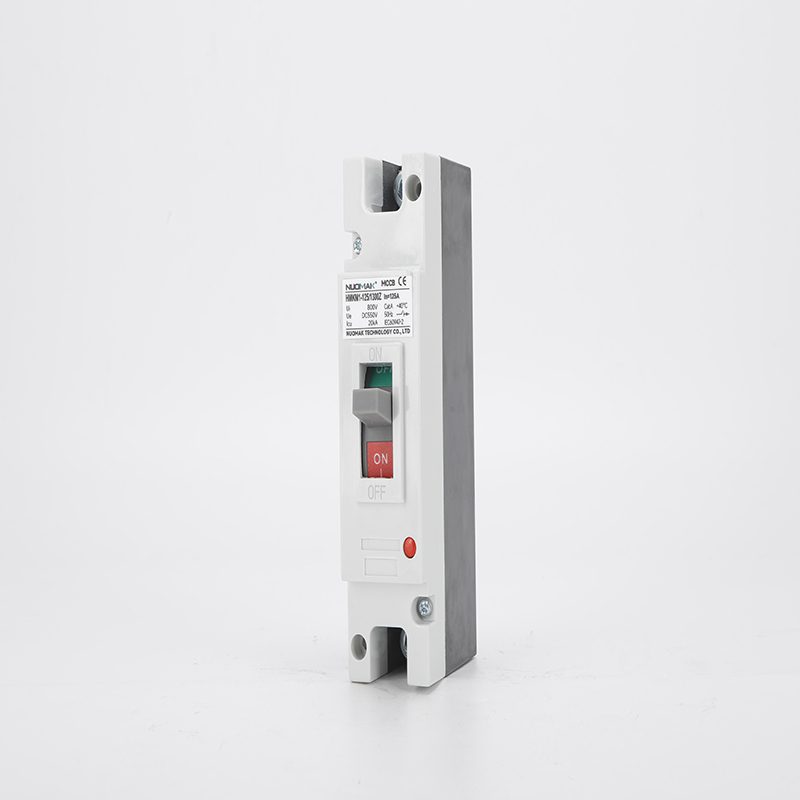

What is a DC MCCB?

A DC MCCB is a type of circuit breaker specifically designed to operate in direct current (DC) circuits. Unlike alternating current (AC) circuits, DC circuits maintain a constant voltage and current flow in one direction. This presents unique challenges for interrupting the flow of electricity, which is precisely what an MCCB is built to handle. A DC MCCB is housed in a molded, insulated case, providing a compact and robust solution for circuit protection.

How a DC MCCB Works

The fundamental job of a DC MCCB is to protect an electrical circuit from damage caused by overcurrents, which can result from either an overload or a short circuit. Here’s a simplified breakdown of its operation:

1. Current Sensing: The MCCB constantly monitors the current flowing through the circuit.
2. Tripping Mechanism: It contains a thermal-magnetic trip unit.
   • Thermal Trip: This component uses a bimetallic strip that heats up and bends in response to a sustained overcurrent (overload). If the current exceeds a set threshold for a specific duration, the strip will bend enough to mechanically trigger the tripping mechanism, opening the contacts.
   • Magnetic Trip: This component uses an electromagnet to respond instantly to a sudden and massive surge in current (short circuit). The high current creates a strong magnetic field that instantly pulls a lever, tripping the breaker and interrupting the circuit almost instantaneously.
3. Arc Extinguishing: Interrupting a DC current is particularly challenging because unlike AC, there are no natural zero crossings where the current briefly stops. When the contacts open, a persistent electrical arc forms. DC MCCBs are equipped with specialized arc chutes or other arc-extinguishing technology. These components rapidly cool, stretch, and de-ionize the arc, effectively extinguishing it and safely breaking the circuit.

Key Features and Technical Specifications

When selecting a DC MCCB, several key features and specifications are crucial to consider:

• Rated Current (In): The maximum continuous current the breaker can handle without tripping.
• Rated Voltage (Ue): The maximum operating voltage the breaker is designed for. DC MCCBs come in various voltage ratings, such as 250V, 500V, 800V, and even higher.
• Breaking Capacity (Icu/Ics): This is the most critical safety specification. It’s the maximum short-circuit current that the breaker can safely interrupt.
  • Icu (Ultimate Breaking Capacity): The maximum current the breaker can interrupt once. After this, it may not be suitable for further use.
  • Ics (Service Breaking Capacity): The maximum current the breaker can interrupt multiple times while remaining in a reusable state. Typically, Ics is a percentage of Icu.

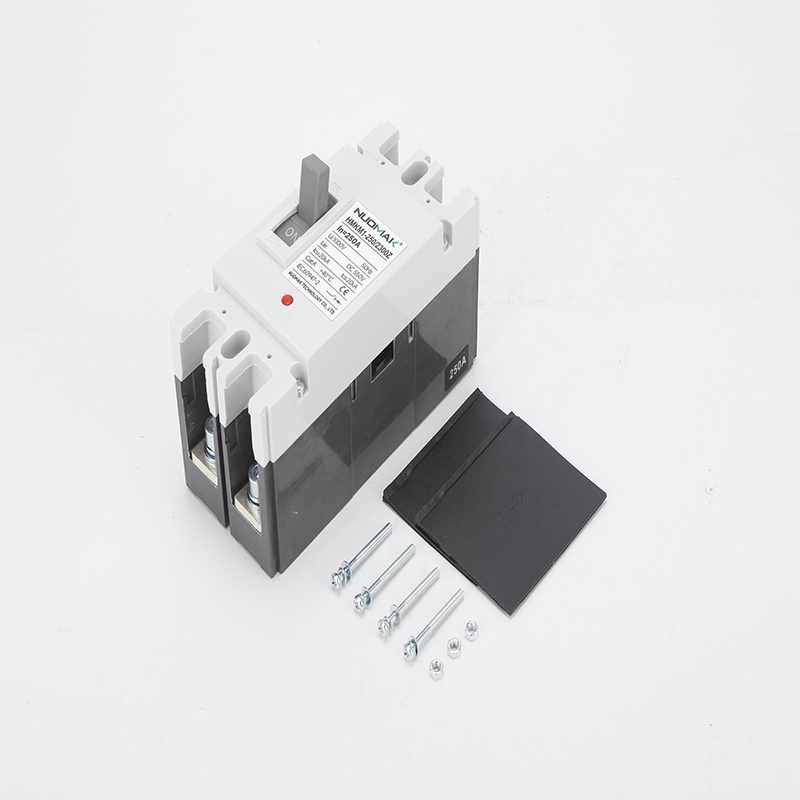

• Number of Poles: Indicates how many conductors the breaker can protect. Common configurations include 1-pole, 2-pole, and 4-pole.
• Trip Curve: Defines how quickly the breaker will trip in response to a fault. Different curves are available for various applications.

DC MCCB vs. DC MCB: When to Use Each

The choice between a DC MCCB and a DC Miniature Circuit Breaker (MCB) often depends on the application’s specific requirements.

Feature	DC MCCB	DC MCB
Current Rating	Higher (typically from 63A to over 1600A)	Lower (typically up to 125A)
Breaking Capacity	High (for high short-circuit currents)	Lower (for low to moderate short-circuit currents)
Adjustability	Often features adjustable trip settings (thermal and magnetic)	Non-adjustable trip settings
Size	Larger, more robust construction	Compact, small form factor
Cost	Higher	Lower
Typical Use	Main circuit protection, large-scale systems (solar farms, battery energy storage)	Branch circuit protection, small to medium-sized systems (home solar setups, EV charging stations)

Use a DC MCCB when you need to protect high-current circuits with significant potential for short-circuit faults. This is your go-to solution for main power distribution, large-scale systems, and applications where the highest level of protection is required.

Use a DC MCB for protecting individual branch circuits or smaller loads where the expected fault current is lower. Think of it as a localized protector for smaller parts of your system.

Applications: Where You’ll Find DC MCCBs

The use of DC MCCBs has exploded with the growth of renewable energy and other DC-powered technologies. You’ll find them in:

• Solar Power Systems: Protecting solar panels (PV arrays) and inverters from overcurrents and short circuits.
• Battery Energy Storage Systems (BESS): Crucial for protecting high-voltage battery banks, which can deliver immense fault currents.
• Electric Vehicle (EV) Charging Stations: Safeguarding the DC charging infrastructure.
• Data Centers: Protecting the DC power distribution systems.
• Telecommunications: In DC power supply systems for communication equipment.

Why Choosing the Right DC MCCB Matters

Selecting the correct DC MCCB for your application is not just about functionality; it’s about safety, reliability, and cost-effectiveness. An undersized breaker can fail to protect your equipment, leading to catastrophic damage and fire hazards. An oversized breaker can be costly and fail to trip in time to prevent harm to smaller conductors or loads.

At NUOMAK, we understand the critical role these components play in your electrical projects. We offer a full range of high-quality DC MCCBs designed to meet the rigorous demands of modern DC applications. Our products are engineered for superior performance, durability, and safety, ensuring your systems are protected for years to come.

Conclusion

DC Molded Case Circuit Breakers are indispensable devices for modern DC electrical systems. Their ability to safely interrupt high-voltage, high-current DC faults makes them the guardian of your valuable equipment and the cornerstone of a safe electrical design. By understanding the key differences between MCCBs and MCBs and carefully considering technical specifications, you can ensure your system is properly protected.

Ready to find the right protection solution for your next project? Explore the full range of NUOMAK DC MCCBs on our website and let our experts help you choose the perfect fit for your needs.
