Dc Mccb Vs Ac Mccb

In the world of electrical power, safety is paramount. When it comes to protecting circuits, a molded case circuit breaker, or MCCB, is a critical component. But not all MCCBs are created equal. Depending on the type of current—Alternating Current (AC) or Direct Current (DC)—you need a specific type of breaker.

For professionals and enthusiasts alike, understanding the fundamental differences between an AC MCCB and a DC MCCB is essential for ensuring the safety and efficiency of any electrical system. This blog will break down what sets these two types of circuit breakers apart and help you choose the right one for your application.

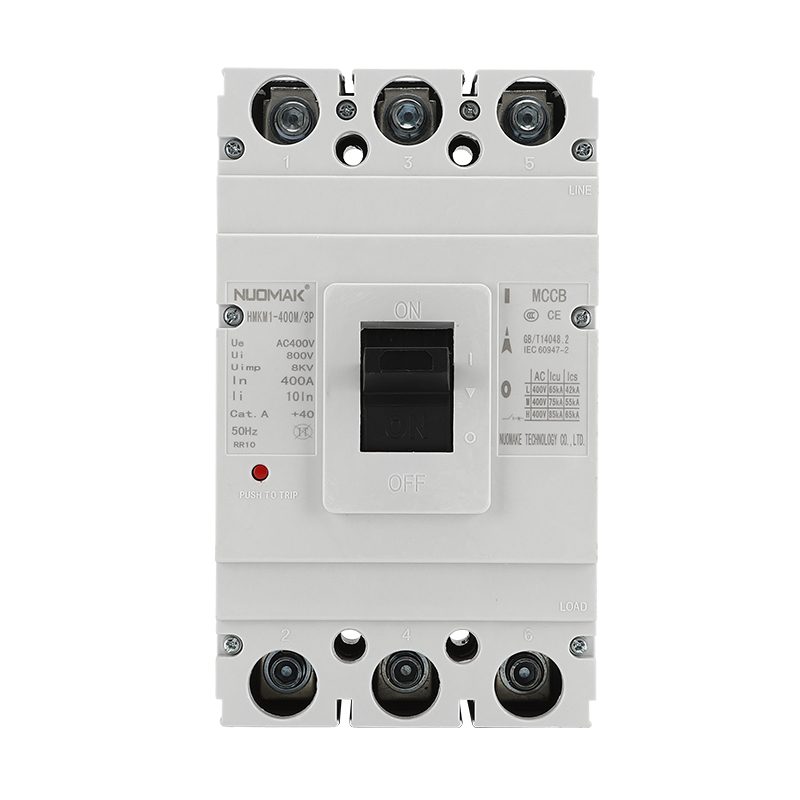

What is an AC MCCB?

An AC molded case circuit breaker is designed to protect electrical circuits that use alternating current. AC is the standard power form for most residential, commercial, and industrial applications. Think of the power that comes from the electrical grid to your home, office, or factory—that’s AC.

AC is characterized by its current that regularly reverses direction, typically at a frequency of 50 or 60 Hz. This unique characteristic is what makes AC breakers’ arc extinguishing mechanism more straightforward and efficient. An AC MCCB is a core component of distribution boards, motor control systems, and other AC-powered equipment, providing reliable protection against overloads and short circuits.

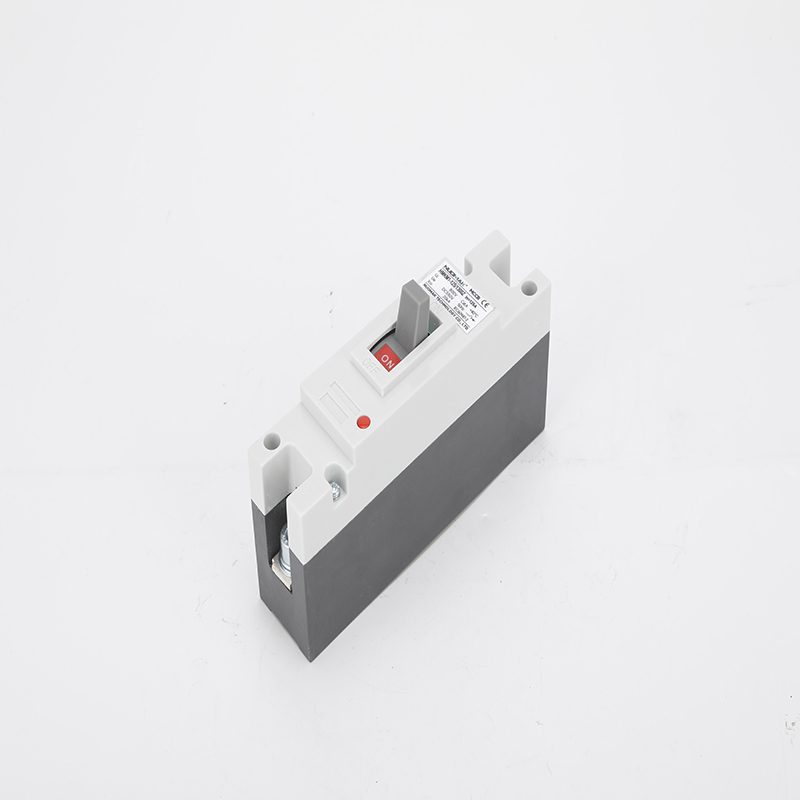

What is a DC MCCB?

A DC molded case circuit breaker, on the other hand, is specifically engineered to protect circuits that operate on direct current. DC flows in one continuous direction, without the periodic reversal of AC. DC power is commonly found in renewable energy systems, such as solar panels and battery storage, as well as in electric vehicle (EV) charging stations, telecommunications, and specific industrial processes.

Because DC current is constant, interrupting it poses a significant challenge. A DC MCCB is built with specialized technology to effectively manage and extinguish the sustained electrical arc that forms when the circuit is broken, which is why it is not interchangeable with an AC breaker.

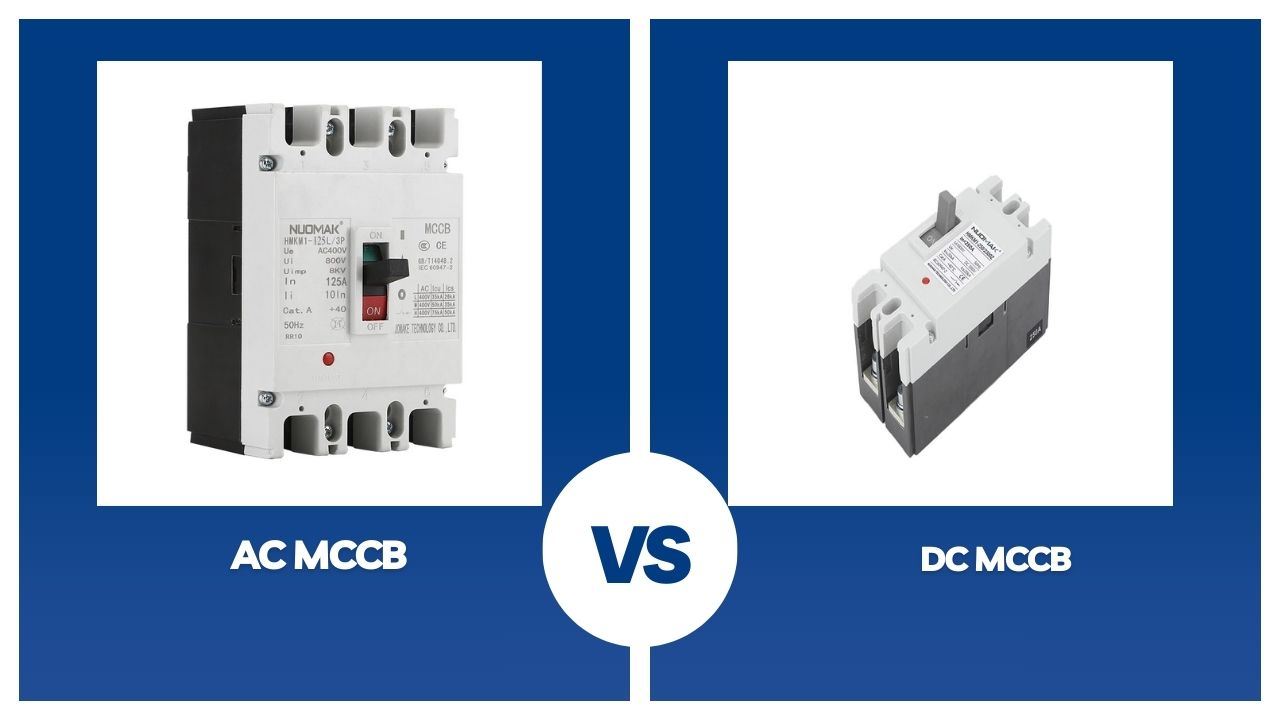

DC MCCB vs. AC MCCB: Key Differences

While both types of molded case circuit breakers perform the same core function—protecting circuits from faults—their distinct operating environments necessitate significant differences in design and function.

Arc Extinguishing Mechanism

This is the most critical difference between the two breakers. When an MCCB trips, it creates a high-temperature electrical arc.

• AC MCCB: The natural “zero-crossing” of AC voltage (where the current briefly drops to zero every half-cycle) makes it easier for the breaker to extinguish the arc. The breaker contacts can separate at the zero-crossing point, and the arc will naturally dissipate.
• DC MCCB: Since DC current never crosses zero, the arc is continuous and much more difficult to extinguish. DC breakers use advanced arc extinguishing chambers, often incorporating magnetic “blowout” coils, which use a strong magnetic field to quickly stretch and cool the arc, forcing it out of the breaker’s path and into a series of metal plates to dissipate it. This more complex design is essential for safe and effective interruption.

Application Scenarios

The choice of breaker is dictated by the power source of the application.

• AC MCCBs are the standard for main power distribution in homes, commercial buildings, and factories. They are used in lighting systems, motors, HVAC units, and other grid-connected equipment.
• DC MCCBs are essential for systems that rely on DC power. This includes solar photovoltaic (PV) systems, battery backup systems, EV chargers, and data centers. Using an AC breaker in a DC circuit is extremely dangerous and will not provide adequate protection.

Rated Voltage & Interrupting Capacity

The voltage ratings and interrupting capacities also differ due to the nature of the current.

• Rated Voltage: AC MCCBs are typically rated for voltages like 230V, 400V, or 690V, which are standard for AC systems. DC MCCBs have specific DC voltage ratings, such as 48V, 125V, 250V, or even higher for large-scale solar and battery systems.
• Interrupting Capacity (Icu/Ics): This refers to the maximum fault current a breaker can safely interrupt. While high-capacity AC breakers are common for industrial grids, DC systems can also have high fault currents, requiring DC MCCBs with robust interrupting capabilities.

Polarity

The unidirectional nature of DC current introduces a factor of polarity.

• AC MCCBs are not polarity-sensitive and can be installed without concern for the direction of current flow.
• DC MCCBs are polarity-sensitive. They must be installed correctly with designated positive (+) and negative (-) terminals to ensure their internal arc extinguishing mechanism works as intended. Incorrect installation can render the breaker ineffective and pose a significant safety risk.

Markings

You can quickly identify the type of breaker by its markings, which are typically found on the product label.

• AC MCCBs are marked with an AC symbol ($\sim$) and a specific voltage (e.g., AC 400V).
• DC MCCBs are marked with a DC symbol ($---$) and a DC voltage rating (e.g., DC 250V). They also often have the polarity symbols ($+$ and $-$) for proper installation.

Conclusion

Choosing the right molded case circuit breaker is not just about matching the current rating; it’s about understanding the fundamental differences between AC and DC power and how a mccb circuit breaker is engineered to handle them. Using an AC breaker in a DC application, or vice versa, can lead to severe equipment damage, electrical fires, and serious injury.

At NUOMAK, we offer a comprehensive range of both AC and DC MCCBs, designed with precision and built for reliability. Our commitment is to provide high-quality electrical protection solutions for every application, from standard grid systems to advanced renewable energy projects.

Need help selecting the right mccb breaker for your project? Contact our experts at NUOMAK, and we’ll ensure your system is protected by the best-in-class solutions.
