Application Advantages Of Electronic Mccbs As Main Switches In Distribution Boxes

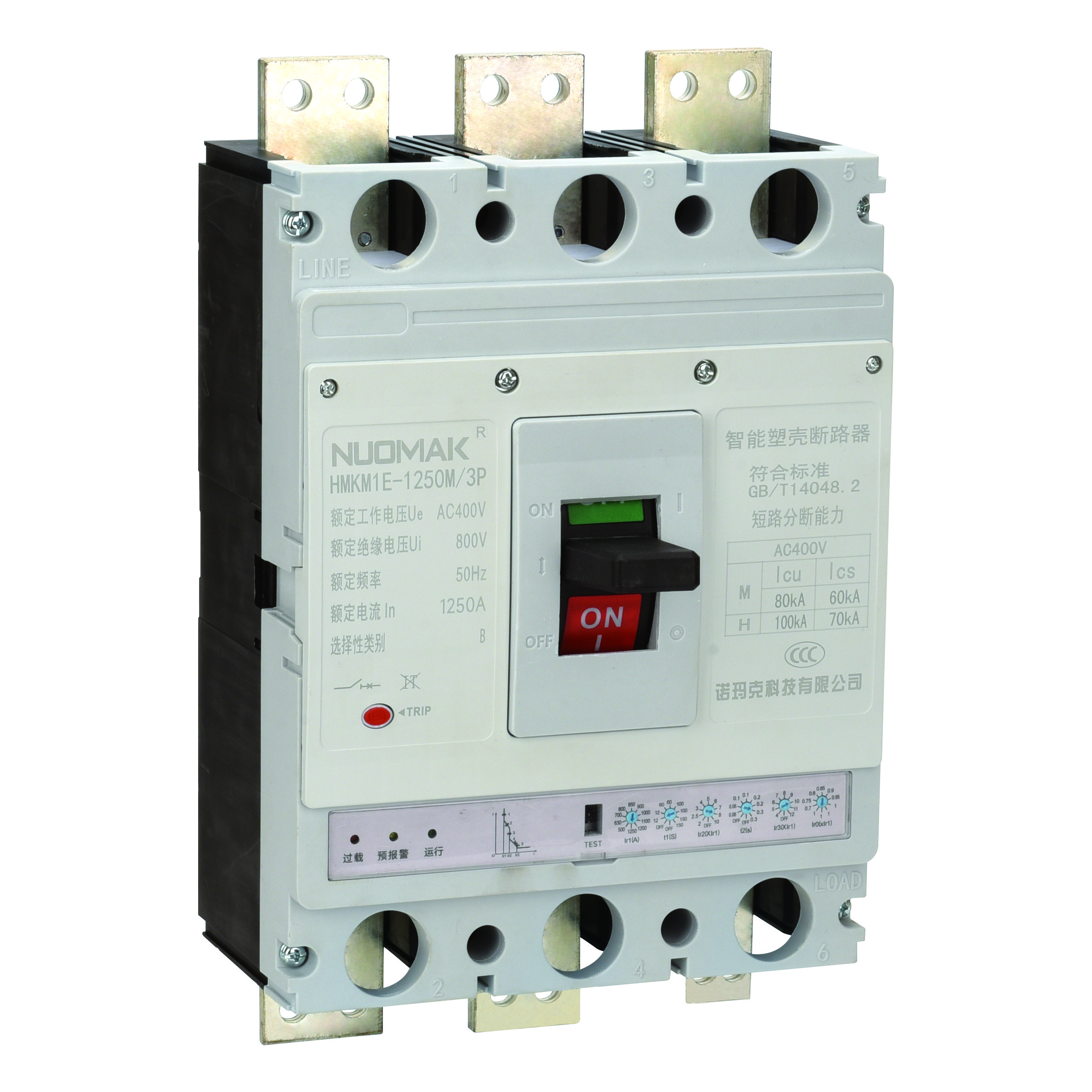

In modern power distribution systems, distribution boxes serve as the core units for electricity distribution and control. The selection of their main circuit breakers directly impacts the safety, reliability, and intelligent level of the entire system. Owing to their advanced technical features, Electronic Molded Case Circuit Breakers (EMCCBs) have gradually become the ideal choice for main switches in distribution cabinets, replacing traditional thermal-magnetic circuit breakers.

Why Choose an Electronic Molded Case Circuit Breaker as the Main Switch?



High-Precision Protection

• .It utilizes microprocessors and sensors to monitor parameters such as current and voltage in real time, with a protection accuracy error of less than ±5%, effectively avoiding false trips or failure to operate caused by ambient temperature variations in traditional circuit breakers.
• It supports adjustable protection parameters (such as Long Delay Ir/Tr, Short Delay Isd/Tsd, and Instantaneous Ii), enabling flexible adaptation to downstream load characteristics.

Selective Protection Capability

• Through precise short-time delay (Tsd) settings, it achieves full selective coordination with downstream circuit breakers. In the event of a branch circuit fault, only the faulty circuit trips while the main switch remains closed, ensuring power continuity in non-faulted areas.

Integrated Smart Functions

• It continuously monitors power quality parameters (current, voltage, power, energy, power factor) and transmits the data to an Energy Management System (EMS) via communication interfaces (e.g., Modbus, Profibus), enabling remote monitoring and energy efficiency analysis.
• Fault Pre-warning Function: Issues an alarm (audible/visual alert or communication warning) prior to overload or short circuit occurrences, supporting predictive maintenance.

High Reliability and Safety

• The electronic trip unit is unaffected by mechanical wear, aging, or temperature drift, resulting in a longer service life.
• It features ground fault protection (optional function), enhancing personnel and equipment safety.

Key Application for EMCCBs in Distribution Boxes

Electronic molded case circuit breakers, when used as main switches, are suitable for applications demanding high power supply quality, safety, and intelligent management capabilities:

• Data Centers: Ensure continuous power supply to IT loads and reduce the risk of downtime.
• Hospitals and Medical Facilities: Ensure power reliability for life support systems and critical equipment.
• Industrial Plants: Adapt to non-linear loads such as motors and variable frequency drives (VFDs), preventing nuisance tripping.
• Commercial Complexes: Enable precise energy consumption management and reduce operational costs.

Future-Proofing Power Distribution with EMCCBs

Electronic molded case circuit breakers (EMCCBs), when used as the main switch in distribution cabinets, have facilitated the upgrade of power distribution systems from “passive protection” to “active management.” Their high-precision protection, intelligent monitoring capabilities, and selective coordination ensure a higher level of safety and reliability for modern electrical infrastructure. For both new construction and retrofit projects, adopting electronic circuit breakers is a critical decision in building efficient and future-proof power distribution systems.
